ISDA: 9ZXC

Deposition Date 2026-01-03

Release Date 2026-07-29

Last Version Date 2026-07-29

Entry Detail

PDB ID:

9ZXC

Keywords:

MEMBRANE PROTEIN

Title:

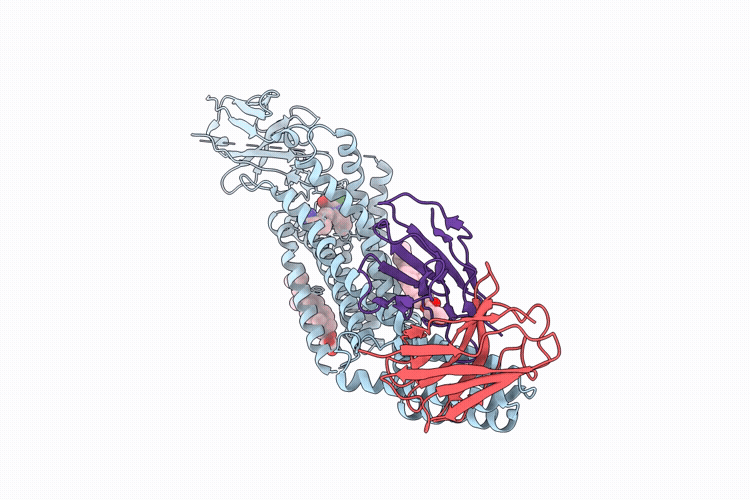

Structure of AT118-R nanobody in complex with the angiotensin II type I receptor bound to losartan

Biological Source:

Source Organism(s):

synthetic construct (Taxon ID: 32630)
Homo sapiens (Taxon ID: 9606)
Escherichia coli (Taxon ID: 562)

Expression System(s):

Homo sapiens

Method Details:

Experimental Method:

ELECTRON MICROSCOPY

Resolution:

3.40 Å

Aggregation State:

PARTICLE

Reconstruction Method:

SINGLE PARTICLE

Download Validation Report

Macromolecular Entities

Structural Superimposition Protein Blast

Polymer Type:polypeptide(L)
Molecule:Nanobody AT118-R,Type-1 angio
Gene (Uniprot):cybC, AGTR1
Chain IDs:A
Chain Length:582
Number of Molecules:1
Biological Source:synthetic construct, Homo sapiens, Escherichia coli

UniProt ID:P30556,P0ABE7 Pfam ID:PF00001

Structural Superimposition Protein Blast

Polymer Type:polypeptide(L)
Molecule:BAG2 Anti-BRIL Fab Heavy Chai
Chain IDs:B (auth: C)
Chain Length:231
Number of Molecules:1
Biological Source:synthetic construct

Structural Superimposition Protein Blast

Polymer Type:polypeptide(L)
Molecule:BAG2 Anti-BRIL Fab Light Chai
Chain IDs:C (auth: D)
Chain Length:215
Number of Molecules:1
Biological Source:synthetic construct

Ligand Molecules
