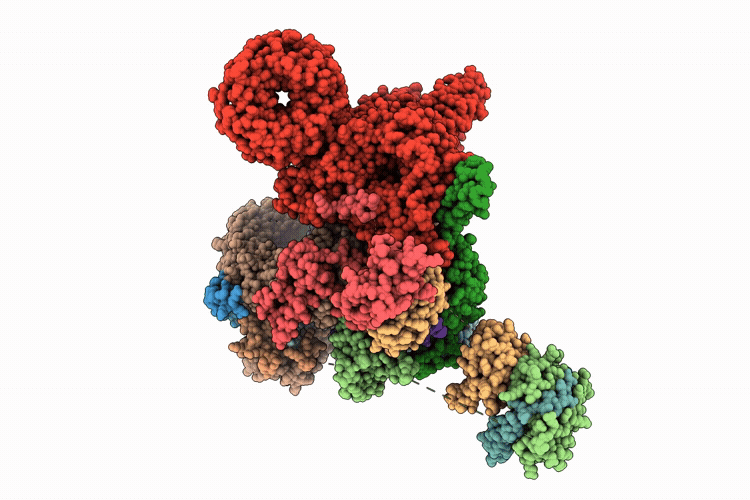

9ZED image
Deposition Date 2025-11-29
Release Date 2026-04-15
Last Version Date 2026-04-15
Entry Detail
PDB ID:
9ZED
Keywords:
Title:
Cryo-EM structure of the endogenous U2/branchpoint spliceosomal complex (SF3A state 2)
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
3.94 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Polymer Type:polyribonucleotide
Molecule:U2 snRNA
Chain IDs:A (auth: 2)
Chain Length:37
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:RNA-binding protein 5
Gene (Uniprot):RBM5
Chain IDs:B (auth: A)
Chain Length:824
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3A subunit 1
Gene (Uniprot):SF3A1
Chain IDs:C (auth: A1)
Chain Length:793
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3A subunit 2
Gene (Uniprot):SF3A2
Chain IDs:D (auth: A2)
Chain Length:464
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3A subunit 3
Gene (Uniprot):SF3A3
Chain IDs:E (auth: A3)
Chain Length:501
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3B subunit 1
Gene (Uniprot):SF3B1
Chain IDs:F (auth: B1)
Chain Length:1304
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3B subunit 2
Gene (Uniprot):SF3B2
Chain IDs:G (auth: B2)
Chain Length:895
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3B subunit 3
Gene (Uniprot):SF3B3
Chain IDs:H (auth: B3)
Chain Length:1217
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3B subunit 4
Gene (Uniprot):SF3B4
Chain IDs:I (auth: B4)
Chain Length:424
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3B subunit 5
Gene (Uniprot):SF3B5
Chain IDs:J (auth: B5)
Chain Length:86
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Splicing factor 3B subunit 6
Gene (Uniprot):SF3B6
Chain IDs:K (auth: B6)
Chain Length:125
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:PHD finger-like domain-contai
Gene (Uniprot):PHF5A
Chain IDs:L (auth: H)
Chain Length:110
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polyribonucleotide
Molecule:pre-mRNA
Chain IDs:M (auth: R)
Chain Length:42
Number of Molecules:1
Biological Source:Homo sapiens
Ligand Molecules
Primary Citation
The tumour suppressor RBM5 activates the helicase DHX15 to regulate splicing.
Biorxiv ? ? ? (2026)
PMID: 41929118 DOI: 10.64898/2026.03.26.714623

Abstact

Pre-mRNA splicing determines the expressed proteome and is frequently dysregulated in cancer. The tumour-suppressor RBM5 controls an exon network regulating apoptosis, yet its molecular mechanism is elusive. Using in vivo spliceosome capture and cryogenic electron microscopy, we determined structures of precatalytic spliceosomes arrested by RBM5 immediately after U2 snRNP branchpoint recognition. Despite intron diversity, the U2-pre-mRNA duplex, branchpoint adenine, and downstream polypyrimidine tract are well-resolved. RBM5 binds the outer SF3B1 HEAT surface and performs dual functions: First, its helix-loop-helix motif and upstream zinc-finger domain sterically block tri-snRNP and Prp8 docking and prevent progression to pre-B and B(act) complexes; Second, its G-patch activates DHX15 and places this DExH-box helicase on the pre-mRNA as it exits SF3B1, poised for branch helix unwinding. DHX15 binding to SF3B1 is facilitated by U2SURP/SR140, which engages SF3B1 near RBM5's helix-loop-helix. Functional assays confirm that disruption of the RBM5 interfaces with either DHX15 or SF3B1 inhibit exon repression. Mutations at these regulatory interfaces are common in cancer genomes and predicted to disrupt its regulation of apoptotic isoforms. Thus, RBM5 acts as a dual-action spliceosome gatekeeper that couples helicase activation with physical stalling to enforce tumour-suppressive alternative splicing programmes.
