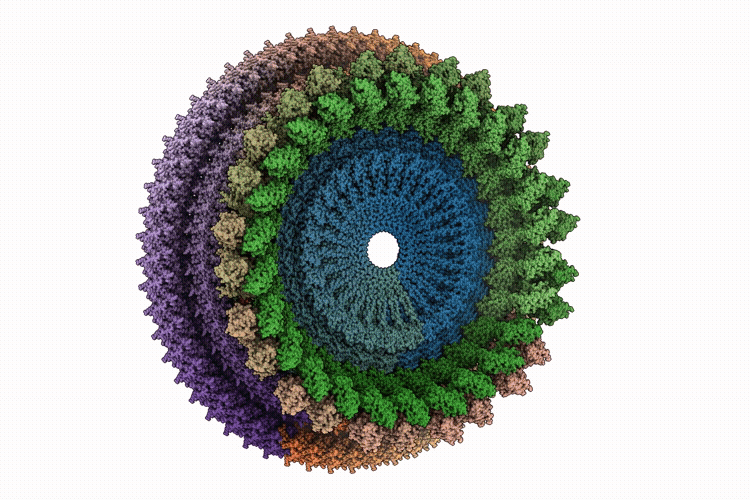

9YFG image
Deposition Date 2025-09-25
Release Date 2026-06-10
Last Version Date 2026-06-10
Entry Detail
PDB ID:
9YFG
Keywords:
MOTOR PROTEIN
Title:
Flagellar outer membrane complex in Vibrio cholerae at disassembled, closed state
Biological Source:
Source Organism(s):
Vibrio cholerae O1 biovar El Tor str. N16961 (Taxon ID: 243277)
Expression System(s):
Vibrio cholerae o1 biovar el tor str. n16961
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.55 Å
Aggregation State:
CELL
Reconstruction Method:
SINGLE PARTICLE
9YFG validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar L-ring protein
Gene (Uniprot):flgH
Chain IDs:A (auth: Aa), B (auth: Ab), C (auth: Ac), D (auth: Ad), E (auth: Ae), F (auth: Af), G (auth: Ag), H (auth: Ah), I (auth: Ai), J (auth: Aj), K (auth: Ak), L (auth: Al), M (auth: Am), N (auth: An), O (auth: Ao), P (auth: Ap), Q (auth: Aq), R (auth: Ar), S (auth: As), T (auth: At), U (auth: Au), V (auth: Av), W (auth: Aw), X (auth: Ax), Y (auth: Ay), Z (auth: Az)
Chain Length:227
Number of Molecules:26
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KQ13 Pfam ID:PF02107
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar P-ring protein
Gene (Uniprot):flgI
Chain IDs:AA (auth: Ba), BA (auth: Bb), CA (auth: Bc), DA (auth: Bd), EA (auth: Be), FA (auth: Bf), GA (auth: Bg), HA (auth: Bh), IA (auth: Bi), JA (auth: Bj), KA (auth: Bk), LA (auth: Bl), MA (auth: Bm), NA (auth: Bn), OA (auth: Bo), PA (auth: Bp), QA (auth: Bq), RA (auth: Br), SA (auth: Bs), TA (auth: Bt), UA (auth: Bu), VA (auth: Bv), WA (auth: Bw), XA (auth: Bx), YA (auth: By), ZA (auth: Bz)
Chain Length:343
Number of Molecules:26
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KQ14 Pfam ID:PF02119
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Flagellar protein FlgT
Gene (Uniprot):VC_2208
Chain IDs:AB (auth: Ca), BB (auth: Cb), CB (auth: Cc), DB (auth: Cd), EB (auth: Ce), FB (auth: Cf), GB (auth: Cg), HB (auth: Ch), IB (auth: Ci), JB (auth: Cj), KB (auth: Ck), LB (auth: Cl), MB (auth: Cm), NB (auth: Cn), OB (auth: Co), PB (auth: Cp), QB (auth: Cq), RB (auth: Cr), SB (auth: Cs), TB (auth: Ct), UB (auth: Cu), VB (auth: Cv), WB (auth: Cw), XB (auth: Cx), YB (auth: Cy), ZB (auth: Cz)
Chain Length:352
Number of Molecules:26
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KPZ9 Pfam ID:PF16548, PF16539, PF16538
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Sodium-type flagellar protein
Gene (Uniprot):VC_1008
Chain IDs:AC (auth: Da), BC (auth: Db), CC (auth: Dc), DC (auth: Dd), EC (auth: De), FC (auth: Df), GC (auth: Dg), HC (auth: Dh), IC (auth: Di), JC (auth: Dj), KC (auth: Dk), LC (auth: Dl), MC (auth: Dm), NC (auth: Dn), OC (auth: Do), PC (auth: Dp), QC (auth: Dq), RC (auth: Dr), SC (auth: Ds), TC (auth: Dt), UC (auth: Du), VC (auth: Dv), WC (auth: Dw), XC (auth: Dx), YC (auth: Dy), ZC (auth: Dz)
Chain Length:271
Number of Molecules:26
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KT95 Pfam ID:PF18393, PF00691
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Sodium-type flagellar protein
Gene (Uniprot):VC_2601
Chain IDs:AD (auth: Ea), BD (auth: Eb), CD (auth: Ec), DD (auth: Ed), ED (auth: Ee), FD (auth: Ef), GD (auth: Eg), HD (auth: Eh), ID (auth: Ei), JD (auth: Ej), KD (auth: Ek), LD (auth: El), MD (auth: Em), ND (auth: En), OD (auth: Eo), PD (auth: Ep), QD (auth: Eq), RD (auth: Er), SD (auth: Es), TD (auth: Et), UD (auth: Eu), VD (auth: Ev), WD (auth: Ew), XD (auth: Ex), YD (auth: Ey), ZD (auth: Ez)
Chain Length:183
Number of Molecules:26
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KNX9 Pfam ID:PF08238
Protein Blast
Polymer Type:polypeptide(L)
Molecule:FlgP
Chain IDs:AE (auth: Fa), BE (auth: Fb), CE (auth: Fc), DE (auth: Fd), EE (auth: Fe), FE (auth: Ff), GE (auth: Fg), HE (auth: Fh), IE (auth: Fi), JE (auth: Fj), KE (auth: Fk), LE (auth: Fl), ME (auth: Fm), NE (auth: Fn), OE (auth: Fo), PE (auth: Fp), QE (auth: Fq), RE (auth: Fr), SE (auth: Fs), TE (auth: Ft), UE (auth: Fu), VE (auth: Fv), WE (auth: Fw), XE (auth: Fx), YE (auth: Fy), ZE (auth: Fz), AF (auth: Ga), BF (auth: Gb), CF (auth: Gc), DF (auth: Gd), EF (auth: Ge), FF (auth: Gf), GF (auth: Gg), HF (auth: Gh), IF (auth: Gi), JF (auth: Gj), KF (auth: Gk), LF (auth: Gl), MF (auth: Gm), NF (auth: Gn), OF (auth: Go), PF (auth: Gp), QF (auth: Gq), RF (auth: Gr), SF (auth: Gs), TF (auth: Gt), UF (auth: Gu), VF (auth: Gv), WF (auth: Gw), XF (auth: Gx), YF (auth: Gy), ZF (auth: Gz)
Chain Length:12
Number of Molecules:52
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Lipoprotein
Gene (Uniprot):VC_2206
Chain IDs:AG (auth: Ha), CG (auth: Hc), EG (auth: He), GG (auth: Hg), IG (auth: Hi), KG (auth: Hk), MG (auth: Hm), OG (auth: Ho), QG (auth: Hq), SG (auth: Hs), UG (auth: Hu), WG (auth: Hw), YG (auth: Hy), AH (auth: Ia), CH (auth: Ic), EH (auth: Ie), GH (auth: Ig), IH (auth: Ii), KH (auth: Ik), MH (auth: Im), OH (auth: Io), QH (auth: Iq), SH (auth: Is), UH (auth: Iu), WH (auth: Iw), YH (auth: Iy), AI (auth: Ja), CI (auth: Jc), EI (auth: Je), GI (auth: Jg), II (auth: Ji), KI (auth: Jk), MI (auth: Jm), OI (auth: Jo), QI (auth: Jq), SI (auth: Js), UI (auth: Ju), WI (auth: Jw), YI (auth: Jy), AJ (auth: Ka), CJ (auth: Kc), EJ (auth: Ke), GJ (auth: Kg), IJ (auth: Ki), KJ (auth: Kk), MJ (auth: Km), OJ (auth: Ko), QJ (auth: Kq), SJ (auth: Ks), UJ (auth: Ku), WJ (auth: Kw), YJ (auth: Ky), AK (auth: La), CK (auth: Lc), EK (auth: Le), GK (auth: Lg), IK (auth: Li), KK (auth: Lk)
Chain Length:105
Number of Molecules:58
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KQ01
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:FlgO domain-containing protei
Gene (Uniprot):VC_2207
Chain IDs:BG (auth: Hb), DG (auth: Hd), FG (auth: Hf), HG (auth: Hh), JG (auth: Hj), LG (auth: Hl), NG (auth: Hn), PG (auth: Hp), RG (auth: Hr), TG (auth: Ht), VG (auth: Hv), XG (auth: Hx), ZG (auth: Hz), BH (auth: Ib), DH (auth: Id), FH (auth: If), HH (auth: Ih), JH (auth: Ij), LH (auth: Il), NH (auth: In), PH (auth: Ip), RH (auth: Ir), TH (auth: It), VH (auth: Iv), XH (auth: Ix), ZH (auth: Iz), BI (auth: Jb), DI (auth: Jd), FI (auth: Jf), HI (auth: Jh), JI (auth: Jj), LI (auth: Jl), NI (auth: Jn), PI (auth: Jp), RI (auth: Jr), TI (auth: Jt), VI (auth: Jv), XI (auth: Jx), ZI (auth: Jz), BJ (auth: Kb), DJ (auth: Kd), FJ (auth: Kf), HJ (auth: Kh), JJ (auth: Kj), LJ (auth: Kl), NJ (auth: Kn), PJ (auth: Kp), RJ (auth: Kr), TJ (auth: Kt), VJ (auth: Kv), XJ (auth: Kx), ZJ (auth: Kz), BK (auth: Lb), DK (auth: Ld), FK (auth: Lf), HK (auth: Lh), JK (auth: Lj), LK (auth: Ll)
Chain Length:190
Number of Molecules:58
Biological Source:Vibrio cholerae O1 biovar El Tor str. N16961
UniProt ID:Q9KQ00 Pfam ID:PF17680
Ligand Molecules
NA
Primary Citation
In-situ cryo-EM structures reveal mechanisms of sheathed flagellar assembly, rotation, and disassembly in Vibrio cholerae
To Be Published ? ? ? (?)
