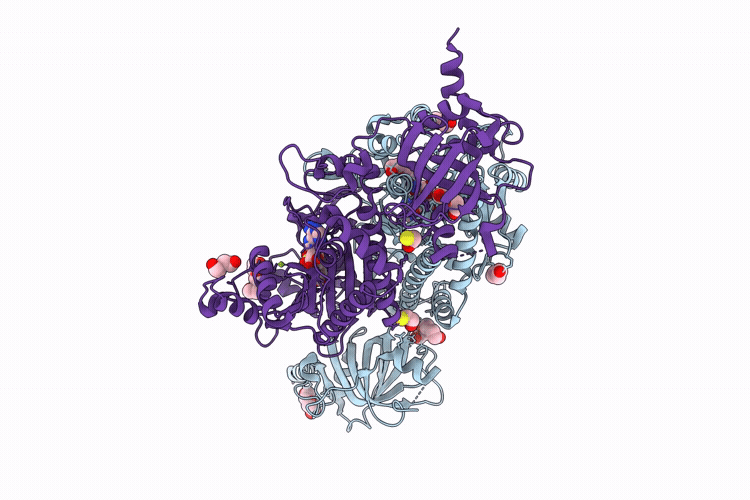

9WEL image
Deposition Date 2025-08-19
Release Date 2026-09-02
Last Version Date 2026-09-02
Entry Detail
PDB ID:
9WEL
Keywords:
LIGASE
Title:
Plasmodium vivax aspartyl-tRNA synthetase in complex with Asp-AMS, Mg ion, Ethylene glycols and Unit cell contraction due to data collected outside the cryo loop
Biological Source:
Source Organism(s):
Plasmodium vivax (Taxon ID: 5855)
Expression System(s):
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.20 Å
R-Value Free:
0.21
R-Value Work:
0.17
R-Value Observed:
0.18
Space Group:
P 61 2 2
9WEL validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:aspartate--tRNA ligase
Gene (Uniprot):PVC01_020016700, PVW1_020019400
Chain IDs:A, B
Chain Length:536
Number of Molecules:2
Biological Source:Plasmodium vivax
UniProt ID:A0A1G4H6Y1 EC:6.1.1.12
Ligand Molecules
BME
CL
DSZ
MG
PEG
PGE
Primary Citation
The active site of aspartyl-tRNA synthetase: Structural studies of the adenylation reaction and flexibility of residues.
To Be Published ? ? ? (?)
Primary Citation of related structures
9WEL
