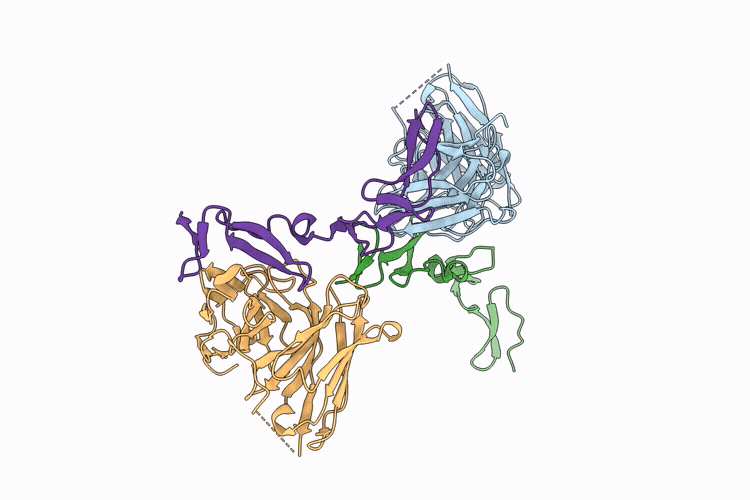

9TUY image
Deposition Date 2026-01-10
Release Date 2026-07-08
Last Version Date 2026-07-08
Entry Detail
PDB ID:
9TUY
Keywords:
CELL ADHESION
Title:
PfRIPR EGF6 and 7 bound to monoclonal antibody MAD8-739
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Plasmodium falciparum 3D7 (Taxon ID: 36329)
Expression System(s):
Homo sapiens
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.80 Å
R-Value Free:
0.25
R-Value Work:
0.22
R-Value Observed:
0.22
Space Group:
P 31
9TUY validation report missing
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:MAD8-739 scFv
Chain IDs:A, C
Chain Length:288
Number of Molecules:2
Biological Source:Homo sapiens
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Immunoglobulin gamma-1 heavy
Gene (Uniprot):RIPR
Chain IDs:B, D
Chain Length:359
Number of Molecules:2
Biological Source:Homo sapiens, Plasmodium falciparum 3D7
UniProt ID:P0DOX5,O97302
Primary Citation
Dynamic hinge-motion of PfRIPR revealed by malaria invasion inhibitory antibodies
To Be Published ? ? ? (?)
Primary Citation of related structures
9TUY
