9TFV image
Deposition Date 2025-11-27
Release Date 2026-07-01
Last Version Date 2026-07-08
Entry Detail
PDB ID:
9TFV
Keywords:
MEMBRANE PROTEIN
Title:

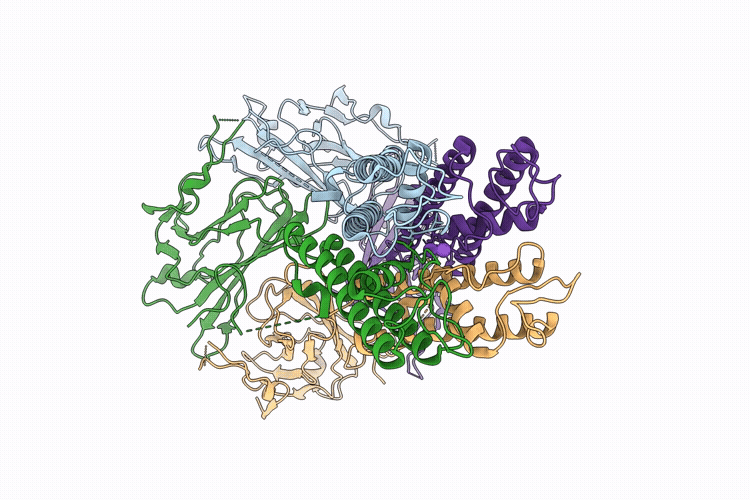

Cryo-EM structure of the inward rectifying potassium channel 7.1 (Kir7.1)
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Homo sapiens
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.60 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
9TFV validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Inward rectifier potassium ch
Gene (Uniprot):KCNJ13
Chain IDs:A, B, C, D
Chain Length:370
Number of Molecules:4
Biological Source:Homo sapiens
UniProt ID:O60928 Pfam ID:PF01007, PF17655
Ligand Molecules
K
Primary Citation
Cryo-EM structure of the human Kir7.1 channel reveals the molecular basis of snowflake vitreoretinal degeneration disease.
Commun Biol ? ? ? (2026)
PMID: 42324408 DOI: 10.1038/s42003-026-10436-0
Primary Citation of related structures
9TFV
