9SJJ image
Deposition Date 2025-08-31
Release Date 2026-07-29
Last Version Date 2026-08-19
Entry Detail
PDB ID:
9SJJ
Title:

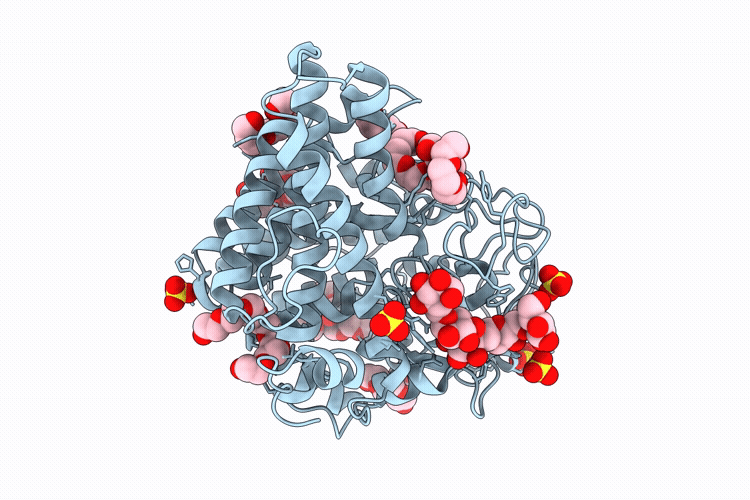

Crystal structure of SusDdex (BT3089) with bound IMO5
Biological Source:
Source Organism(s):
Method Details:
Experimental Method:
Resolution:
1.70 Å
R-Value Free:
0.19
R-Value Work:
0.16
Space Group:
I 2 2 2
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:SusD homolog
Gene (Uniprot):BT_3089
Chain IDs:A
Chain Length:478
Number of Molecules:1
Biological Source:Bacteroides thetaiotaomicron VPI-5482
Primary Citation
Structural and functional characterisation of the dextran utilisome from Bacteroides thetaiotaomicron .
J Struct Biol X 14 100153 100153 (2026)
PMID: 42569704 DOI: 10.1016/j.yjsbx.2026.100153

Abstact

Bacteroides thetaiotaomicron (B. theta) is a model Bacteroidota of the healthy human gut microbiota and a specialist in glycan utilisation. Like other Bacteroides, B. theta has many highly regulated polysaccharide utilisation loci (PUL) that encode outer membrane (OM) TonB-dependent transporters (SusC), closely associated "lid" lipoproteins (SusD), and additional surface-exposed lipoproteins (SLPs) that bind and partially degrade specific glycans derived from host cells, diet, or other microbiota members. The canonical starch PUL products are thought to form a dynamic complex in the presence of starch. However, other PULs form stable complexes in the absence of substrate (recently named "utilisomes"), with additional surface lipoproteins tightly associated with the core SusCD complex. In this study, we characterised the B. theta dextran utilisome, with a SusCD(dex) core and an associated glycoside hydrolase (GH(dex)) and surface glycan binding protein (SBGP(dex)). Via X-ray crystallography we solved high-resolution structures of SBGP(dex) in isolation and SusD(dex) and GH(dex) bound to dextran oligosaccharides. We used isothermal titration calorimetry (ITC) to quantify ligand binding of wild type and mutant SLPs. We further used single particle cryo-EM of the catalytically inactive dextran utilisome to visualise open and closed states of the complex. Three occupied dextran binding sites were observed across SusC(dex), SusD(dex) and GH(dex), with substrate observed in both open and closed states of SusD(dex). 3D variability analysis showed a minority of particles in the process of SusD(dex) lid closure. Together our work defines commonalities and differences across utilisomes dedicated to the import of simple glycans.
