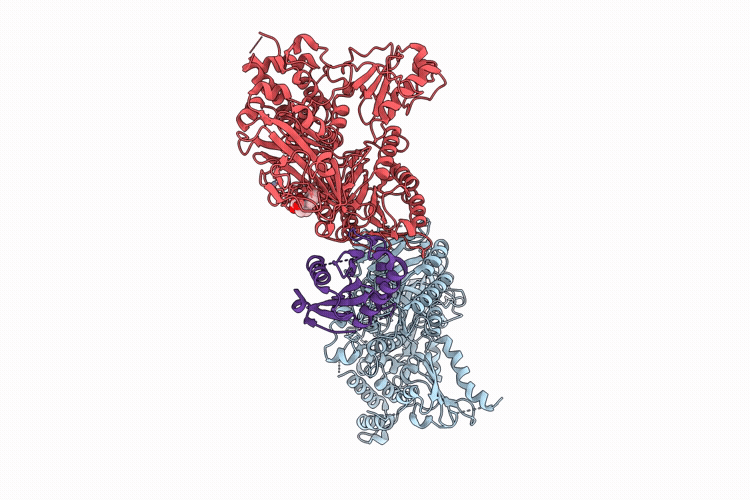

9OZK image
Deposition Date 2025-06-05
Release Date 2026-06-10
Last Version Date 2026-06-10
Entry Detail
PDB ID:
9OZK
Keywords:
TRANSPORT PROTEIN
Title:
Structure of human Sec23a/Sec24a/Sec22b bound to ligand CPD2
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Insect cell expression vector ptie1, Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.80 Å
R-Value Free:
0.23
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
C 1 2 1
9OZK validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Protein transport protein Sec
Gene (Uniprot):SEC23A
Chain IDs:A
Chain Length:765
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q15436 Pfam ID:PF04810, PF04811, PF08033, PF04815, PF00626
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Protein transport protein Sec
Gene (Uniprot):SEC24A
Chain IDs:B
Chain Length:748
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:O95486 Pfam ID:PF04810, PF04811, PF08033, PF04815, PF00626
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Vesicle-trafficking protein S
Gene (Uniprot):SEC22B
Chain IDs:C
Chain Length:157
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:O75396 Pfam ID:PF13774
Ligand Molecules
A1CE9
ZN
Primary Citation
Structure of human Sec23a/Sec24a/Sec22b bound to ligand CPD1
To Be Published ? ? ? (?)
