9MVE image
Deposition Date 2025-01-15
Release Date 2026-07-22
Last Version Date 2026-07-22
Entry Detail
PDB ID:
9MVE
Keywords:
VIRUS
Title:

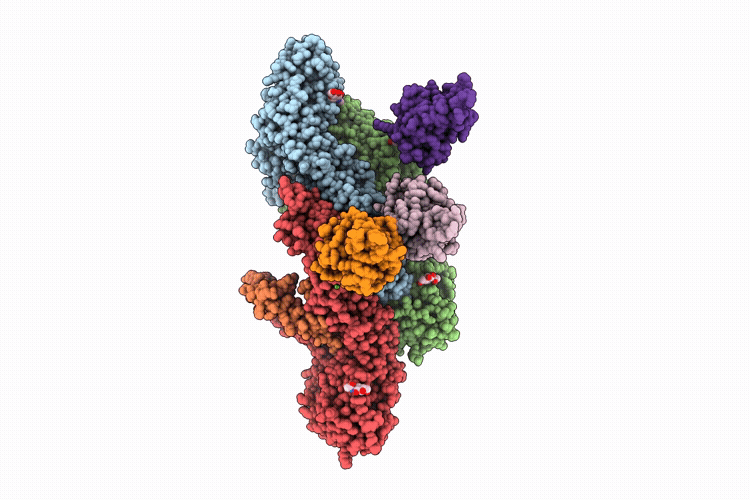

Dengue virus serotype-3 (DENV3) complex with DC-SIGN CRD at 4C
Biological Source:
Source Organism(s):
dengue virus type 3 (Taxon ID: 11069)
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Aedes albopictus, Escherichia coli 'bl21-gold(de3)plyss ag'
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.40 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
9MVE validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Envelope protein E
Chain IDs:A, C, E
Chain Length:493
Number of Molecules:3
Biological Source:dengue virus type 3
UniProt ID:Q6DRA0
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:M protein
Chain IDs:B, D, F
Chain Length:75
Number of Molecules:3
Biological Source:dengue virus type 3
UniProt ID:Q6DRA0
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:DC-SIGN CRD
Gene (Uniprot):CD209
Chain IDs:G (auth: K), H (auth: J), I (auth: L)
Chain Length:192
Number of Molecules:3
Biological Source:Homo sapiens
UniProt ID:Q9NNX6 Pfam ID:PF00059
Ligand Molecules
CA
NAG
Primary Citation
Cryo-EM structures and biochemical assays demonstrate dengue viruses utilize heparin and glycan binding receptor DC-SIGN for infection
To Be Published ? ? ? (?)
Primary Citation of related structures
9MVE
