9X1I image
Deposition Date 2025-10-02
Release Date 2026-03-18
Last Version Date 2026-03-18
Entry Detail
PDB ID:
9X1I
Keywords:
Title:

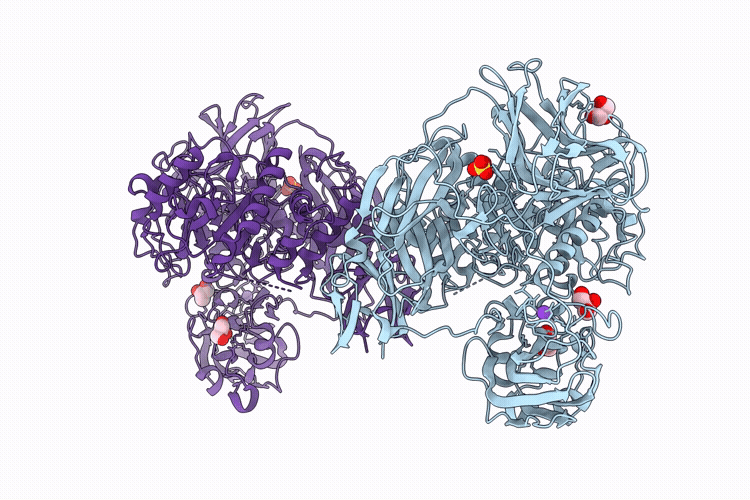

Structure of endo-beta-N-acetylglucosaminidase HS
Biological Source:
Source Organism(s):
Expression System(s):
Method Details:
Experimental Method:
Resolution:
1.81 Å
R-Value Free:
0.24
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
P 21 21 21
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Endo-beta-N-acetylglucosamini
Chain IDs:A, B
Chain Length:981
Number of Molecules:2
Biological Source:human oral metagenome
Primary Citation
Crystal structure of endo-beta-N-acetylglucosaminidase HS alpha.
Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 82 94 100 (2026)
PMID: 41784007 DOI: 10.1107/S2053230X26001214

Abstact

The crystal structure of endo-beta-N-acetylglucosaminidase HSalpha (Endo HSalpha) was determined at 1.8 A resolution, revealing that the enzyme is composed of five distinct domains. Domains I to III adopt a fold that is conserved among GH85 enzymes, with catalytic residues Asn216, Glu218 and Tyr252 corresponding to conserved positions, while Tyr282 is newly implicated in catalysis based on the Endo HSalpha structure. A long loop unique to Endo HSalpha constricts the active site in domain I. Domain IV represents a novel structural element that is not observed in other GH85 enzymes. Its glycan-binding model and structural similarity to known sugar-binding domains play a role in substrate recognition. The minimal contacts with other domains allow it to remain flexible, accommodating bulky substrates at the active site. These features provide insights into the structural basis for substrate specificity and expand the structural diversity of the GH85 family.
