9VSN image
Deposition Date 2025-07-09
Release Date 2026-05-20
Last Version Date 2026-05-20
Entry Detail
PDB ID:
9VSN
Keywords:
Title:

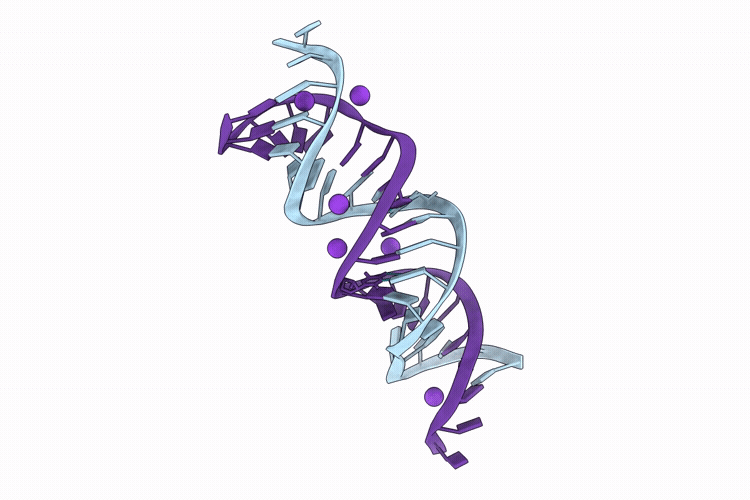

Crystal structure of RNA duplex containing an IRES internal loop
Biological Source:
Source Organism(s):
Method Details:
Experimental Method:
Resolution:
3.10 Å
R-Value Free:
0.26
R-Value Work:
0.21
R-Value Observed:
0.22
Space Group:
P 21 21 21
Macromolecular Entities
Polymer Type:polyribonucleotide
Molecule:RNA (5'-R(*UP*UP*GP*GP*AP*AP*
Chain IDs:A, B
Chain Length:23
Number of Molecules:2
Biological Source:synthetic construct
Ligand Molecules
Primary Citation
AI-Augmented Iterative Screening of Libraries Against RNA Targets (AISLAR) Boosts Discovery of SAR-Tractable RNA Binders and Rational Analog Design.
Small Sci 6 e202600007 e202600007 (2026)
PMID: 42006585 DOI: 10.1002/smsc.202600007

Abstact

Small molecules that target RNA are emerging as a powerful therapeutic modality, although deriving structure-activity relationships (SARs) remains a major challenge. Here, we present AI-augmented Iterative Screening of Libraries Against RNA targets (AISLAR), a machine learning-driven strategy that accelerates the discovery of SAR-tractable RNA binders and enables rational analog design. We screened diverse, drug-like chemical libraries against two RNA motifs derived from human p53 mRNA and applied AISLAR within the open-source KNIME platform. The application of AISLAR yielded chemotypes suitable for SAR development. Biophysical assays confirmed direct binding of representative compounds to one RNA motif. Guided by early SAR trends, we developed a pharmacophore hypothesis and designed an analog that retained binding with lower predicted cardiac channel liability. Docking simulations using the crystal structure of the RNA motif revealed a plausible binding mode for the validated hit compound. While further validation across diverse RNA targets and compound libraries will be required, these results demonstrate how AISLAR can be used as a workflow linking RNA-targeted small molecule screening with rational analog design.
