9VGR image
Deposition Date 2025-06-14
Release Date 2026-04-22
Last Version Date 2026-04-22
Entry Detail
PDB ID:
9VGR

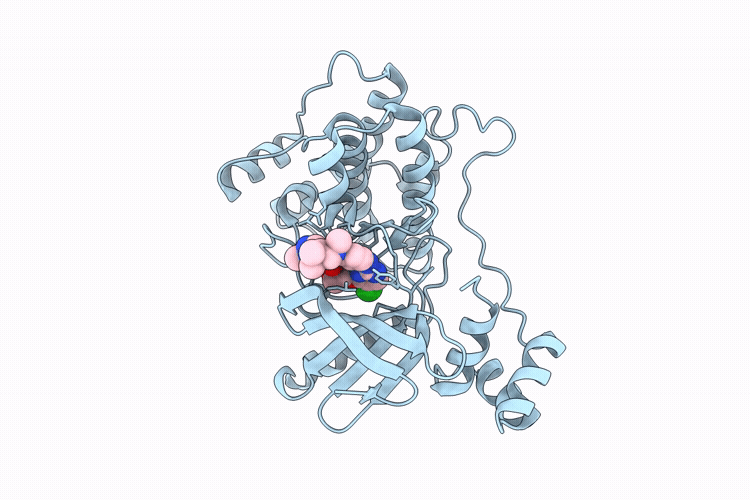

Title:
Crystal Structure of the NUAK1-MARK3 kinase domain chimera bound with small molecule inhibitor 4-((5-((5-chloro-4-(((3R,3aR,6R,6aR)-6-methoxyhexahydrofuro[3,2-b]furan-3-yl)oxy)pyrimidin-2-yl)amino)-2-((2-(dimethylamino)ethyl)(methyl)amino)phenyl)carbamoyl)-1-methyl-3H-pyrazol-1-ium-3-ide
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
2.00 Å
R-Value Free:
0.19
R-Value Work:
0.16
R-Value Observed:
0.16
Space Group:
I 2 2 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:MAP/microtubule affinity-regu
Gene (Uniprot):MARK3
Chain IDs:A
Chain Length:326
Number of Molecules:1
Biological Source:Homo sapiens
Ligand Molecules
Primary Citation
Structure-Based Design of Potent and Highly Selective NUAK1 Inhibitors by Exploiting a Unique Glutamate Switch for the Prevention of Tumor Growth, Migration, and Invasion.
J. Med. Chem. 69 7817 7838 (2026)
PMID: 41855469 DOI: 10.1021/acs.jmedchem.5c03079

Abstact

NUAK1, an AMPK-related kinase overexpressed in cancers, plays a crucial role in tumor metastasis and cell survival, making it an attractive cancer therapeutic target. Herein, we report potent, selective NUAK1 inhibitors via structure-guided repurposing of a covalent JAK3 inhibitor. By capitalizing on the critical structural difference horizontal line Cys909 in JAK3 versus Glu139 in NUAK1 horizontal line we substituted the electrophilic warhead with glutamate-favoring moieties, a modification that confers selective NUAK1 targeting. Supporting this design rationale, cocrystal structures verify the specific engagement of these moieties with the Glu139 residue of NUAK1. Among the synthesized analogs, candidate compound 10i exhibits subnanomolar NUAK1 inhibition (IC(50) = 0.49 nM) and kinome-wide selectivity. Besides, 10i suppresses proliferation, migration, and invasion of triple-negative breast cancer cells, reverses EMT markers, and shows robust antitumor efficacy in mouse xenografts. This study provides a promising lead and validates Glu139 as an anchor for selective NUAK1 targeting.
