Abstact

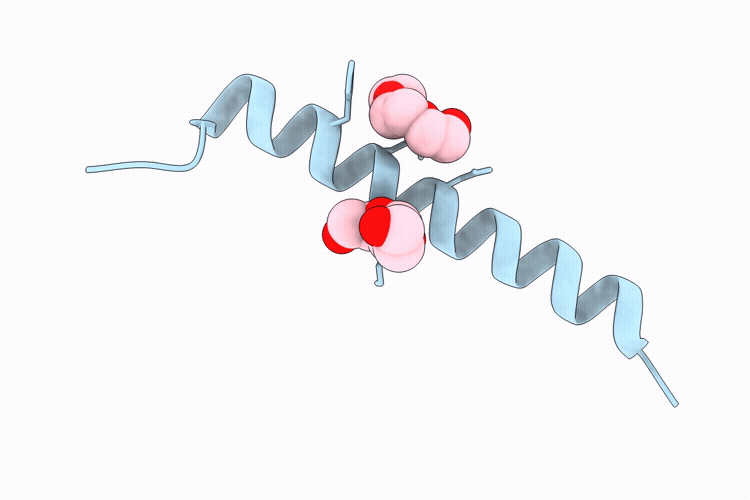

With the meteoric rise in interest in GLP-1 and GIP analogue peptides in recent years, there is a drive for the use of alternative purification techniques to alleviate processing bottlenecks and reduce the cost of peptide manufacturing. However, a lack of reported crystal structures for this class of peptides has hindered molecular-scale understanding of GLP-1/GIP analogue peptide crystallization, particularly related to acylated peptides. This paper therefore reports what is believed to be the first crystal structure of a GLP-1 and GIP analogue lipopeptide. Crystals obtained using a microseed matrix-screening protocol diffracted to </=1.6 A resolution in space group P4(3), with unit-cell parameters a = b = 64.66, c = 11.42 A. Model building and the resultant structural analysis reveals that the predominantly helical peptide forms a uniquely porous spiral crystal structure composed of clockwise-ascending monomers in a square pattern, with aromatic C...H-pi interactions around Phe22 forming the primary crystal contact between neighbouring square motifs.
