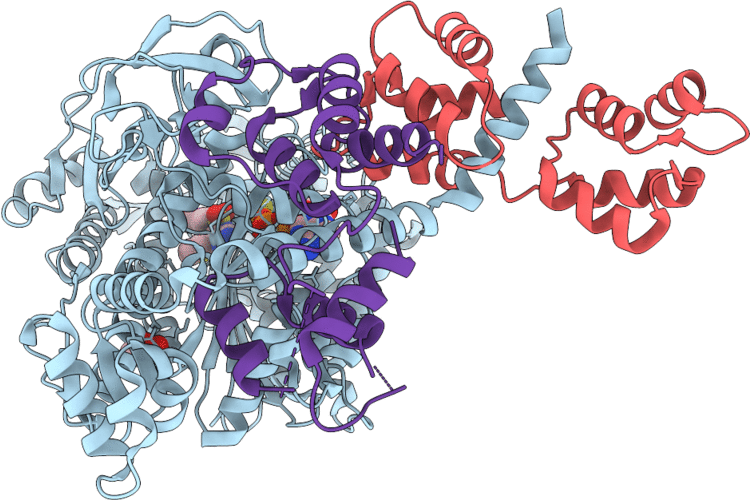

9T7I image
Deposition Date 2025-11-10
Release Date 2026-08-05
Last Version Date 2026-08-05
Entry Detail
PDB ID:
9T7I
Keywords:
MOTOR PROTEIN
Title:
Plasmodium falciparum Myosin A full-length, post-rigor state, complexed to the inhibitor KNX-115 and ATP-gamma-S
Biological Source:
Source Organism(s):
Plasmodium falciparum (Taxon ID: 5833)
Expression System(s):
Spodoptera frugiperda
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.35 Å
R-Value Free:
0.23
R-Value Work:
0.18
R-Value Observed:
0.18
Space Group:
P 21 21 21
9T7I validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Myosin-A
Gene (Uniprot):MyoA
Chain IDs:A
Chain Length:818
Number of Molecules:1
Biological Source:Plasmodium falciparum
UniProt ID:Q8IDR3 Pfam ID:PF00063
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Myosin A tail domain interact
Gene (Uniprot):PF3D7_1246400
Chain IDs:B
Chain Length:204
Number of Molecules:1
Biological Source:Plasmodium falciparum
UniProt ID:Q8I4W8 Pfam ID:PF21550, PF13405
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Myosin essential light chain
Gene (Uniprot):PF3D7_1017500
Chain IDs:C (auth: E)
Chain Length:134
Number of Molecules:1
Biological Source:Plasmodium falciparum
UniProt ID:Q8IJM4
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
SEP A SER modified residue
Ligand Molecules
A1JT8
AGS
GOL
MG
Primary Citation
Plasmodium falciparum Myosin A full-length, post-rigor state, complexed to the inhibitor KNX-115 and ATP-gamma-S
To Be Published ? ? ? (?)
Primary Citation of related structures
9T7I
