9SUV image
Deposition Date 2025-09-30
Release Date 2026-05-27
Last Version Date 2026-06-24
Entry Detail
PDB ID:
9SUV
Keywords:
Title:

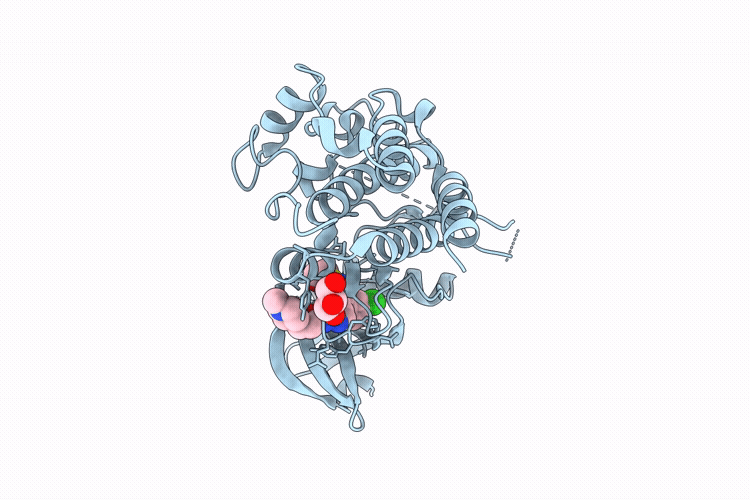

Structure of an inhibitor of Human TGF-beta Type I Receptor
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
1.50 Å
R-Value Free:
0.21
R-Value Work:
0.18
R-Value Observed:
0.18
Space Group:
P 21 21 21
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:TGF-beta receptor type-1
Gene (Uniprot):TGFBR1
Chain IDs:A
Chain Length:306
Number of Molecules:1
Biological Source:Homo sapiens
Primary Citation

Abstact

As part of a therapeutic approach to idiopathic pulmonary fibrosis (IPF) using inhaled ALK5 inhibitors, which enable targeted lung delivery while minimizing systemic side effects, this work describes the optimization process of a previously reported series featuring a 4,6-disubstituted pyridazine core. The medicinal chemistry exploration, aimed at increasing cellular potency while keeping physicochemical and ADME properties favorable for inhalation, was directed to the functionalization of the 3-position in the pyridazine core. An efficient SAR exploration, supported by a late-stage functionalization (LSF) approach, led to the identification of a small set of compounds worthy of in vivo characterization. Compound 20 showed a persistent and lung-restricted target engagement in a pharmacodynamic model, which well-correlated with its in vitro solubility measured in simulated lung fluid (SLF). When tested in a mouse model of lung fibrosis, 20 showed remarkable efficacy, thus representing an advanced lead candidate for the development of topical antifibrotic therapeutics.
