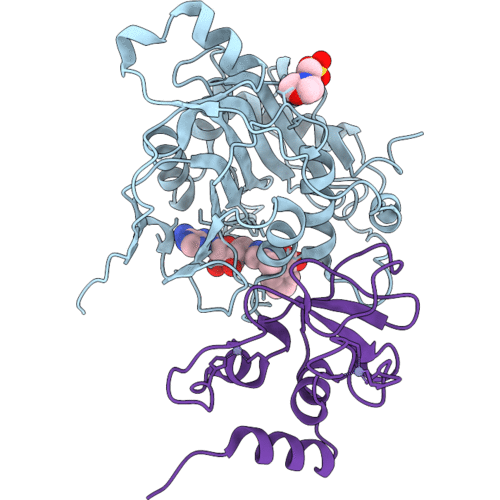

9SP4 image
Deposition Date 2025-09-16
Release Date 2026-09-09
Last Version Date 2026-09-09
Entry Detail
PDB ID:
9SP4
Keywords:
VIRAL PROTEIN
Title:
SARS-CoV-2 nsp16-nsp10 in complex with SAM derivative inhibitor GSA964
Biological Source:
Source Organism(s):
Severe acute respiratory syndrome coronavirus 2 (Taxon ID: 2697049)
Expression System(s):
Escherichia coli bl21(de3)
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.90 Å
R-Value Free:
0.20
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
P 31 2 1
9SP4 validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:2'-O-methyltransferase nsp16
Gene (Uniprot):rep
Chain IDs:A
Chain Length:302
Number of Molecules:1
Biological Source:Severe acute respiratory syndrome coronavirus 2
UniProt ID:P0DTD1 Pfam ID:PF06460 EC:2.7.7.48
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Non-structural protein 10
Chain IDs:B
Chain Length:142
Number of Molecules:1
Biological Source:Severe acute respiratory syndrome coronavirus 2
UniProt ID:P0DTC1 Pfam ID:PF09401
Ligand Molecules
A1JPG
MES
ZN
Primary Citation
SARS-CoV-2 nsp16-nsp10 in complex with SAM derivative inhibitor 3
To Be Published ? ? ? (?)
Primary Citation of related structures
9SP4
