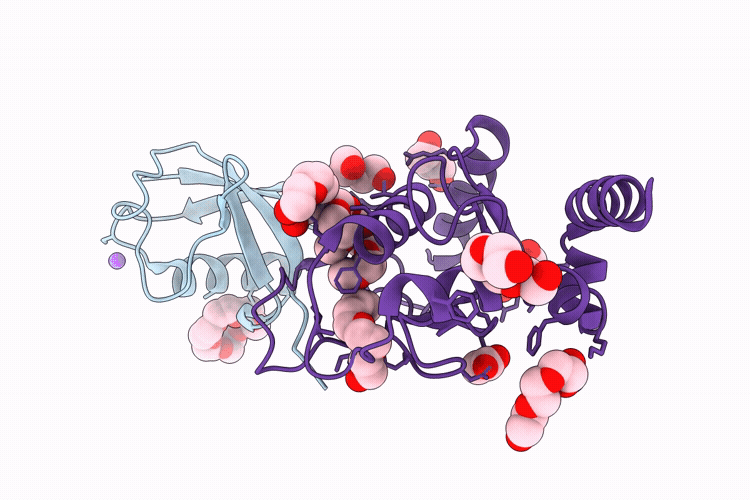

9RUD image
Deposition Date 2025-07-03
Release Date 2026-07-15
Last Version Date 2026-07-15
Entry Detail
PDB ID:
9RUD
Keywords:
SIGNALING PROTEIN
Title:
Crystal structure of UBE2J2 in complex with ubiquitin
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Escherichia coli bl21(de3)
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.32 Å
R-Value Free:
0.24
R-Value Work:
0.19
R-Value Observed:
0.19
Space Group:
P 1 21 1
9RUD validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Polyubiquitin-B
Gene (Uniprot):UBB
Chain IDs:A (auth: B)
Chain Length:76
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:P0CG47 Pfam ID:PF00240
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Ubiquitin-conjugating enzyme
Gene (Uniprot):UBE2J2
Chain IDs:B (auth: D)
Chain Length:173
Number of Molecules:1
Biological Source:Homo sapiens
UniProt ID:Q8N2K1 Pfam ID:PF00179 EC:2.3.2.23
Ligand Molecules
ACT
NA
PEG
PG4
PG6
Primary Citation
Crystal structure of UBE2J2 in complex with ubiquitin
To Be Published ? ? ? (?)
Primary Citation of related structures
9RUD
