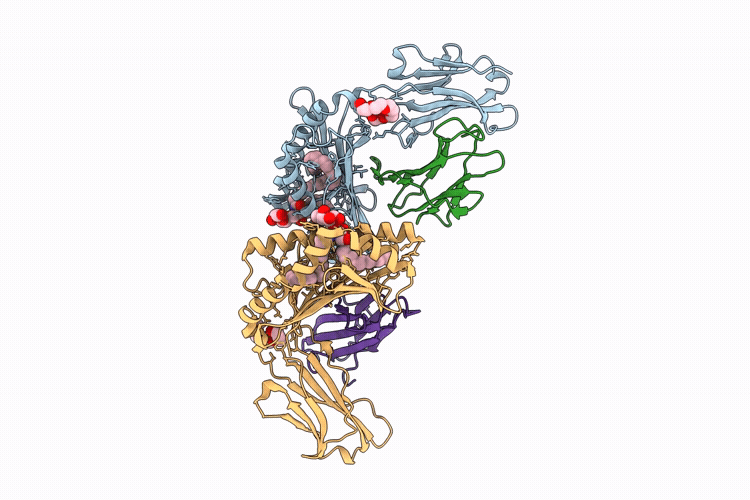

9RSE image
Deposition Date 2025-07-01
Release Date 2026-07-15
Last Version Date 2026-07-15
Entry Detail
PDB ID:
9RSE
Keywords:
IMMUNE SYSTEM
Title:
Human CD1d with lipid antigen bound
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.76 Å
R-Value Free:
0.25
R-Value Work:
0.21
Space Group:
P 21 21 2
9RSE validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Antigen-presenting glycoprote
Gene (Uniprot):CD1D
Chain IDs:A, C
Chain Length:296
Number of Molecules:2
Biological Source:Homo sapiens
UniProt ID:P15813 Pfam ID:PF16497, PF07654
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Beta-2-microglobulin
Gene (Uniprot):B2M
Chain IDs:B, D
Chain Length:100
Number of Molecules:2
Biological Source:Homo sapiens
UniProt ID:P61769 Pfam ID:PF07654
Ligand Molecules
1PE
AGH
Primary Citation
Structural features of human and macaque CD1d: Implications for antigen presentation
To Be Published ? ? ? (?)
Primary Citation of related structures
9RSE
