Deposition Date 2025-05-27
Release Date 2026-07-08
Last Version Date 2026-07-08
Entry Detail
PDB ID:
9RBU
Keywords:
STRUCTURAL PROTEIN
Title:

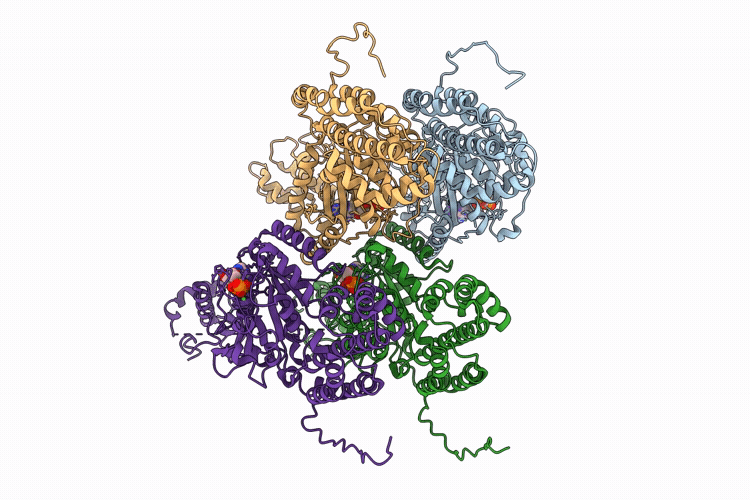

Cryo-ET structure of full-length membrane-bound EHD2 complex
Biological Source:
Source Organism(s):
Mus musculus (Taxon ID: 10090)
Expression System(s):
Escherichia coli bl21(de3)
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
6.70 Å
Aggregation State:
FILAMENT
Reconstruction Method:
SUBTOMOGRAM AVERAGING
9RBU validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:EH domain-containing protein
Gene (Uniprot):Ehd2
Chain IDs:A, B, C, D
Chain Length:543
Number of Molecules:4
Biological Source:Mus musculus
UniProt ID:Q8BH64 Pfam ID:PF16880, PF00350, PF18150, PF12763
Ligand Molecules
ATP
MG
Primary Citation
Structures of EHD2 filaments on curved membranes provides a model for caveolar neck stabilization
biorxiv.org ? ? ? (2025)
DOI: 10.1101/2025.06.05.658037
