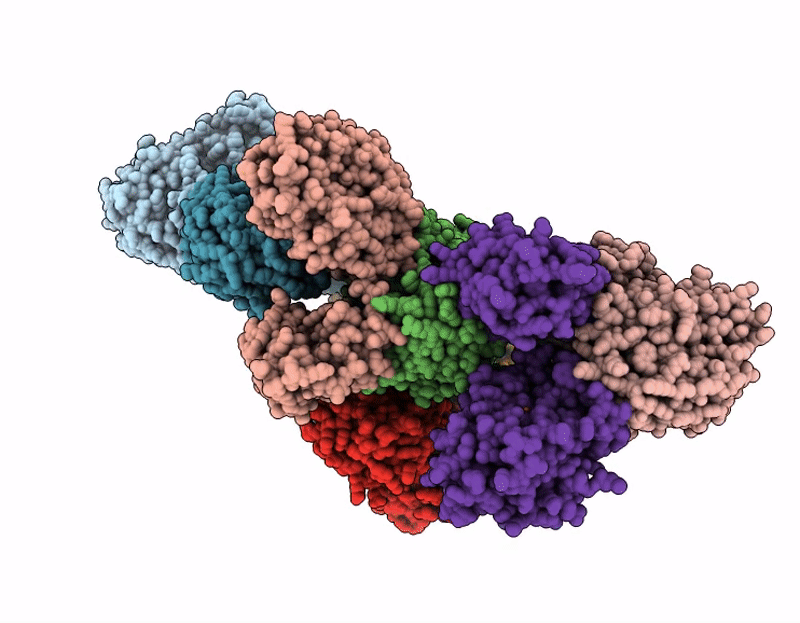

9R99 image
Deposition Date 2025-05-19
Release Date 2026-01-21
Last Version Date 2026-05-20
Entry Detail
PDB ID:
9R99
Keywords:
Title:
DhhP of Borrelia burgdorferi in complex with MD1252
Biological Source:
Source Organism(s):
Expression System(s):
Method Details:
Experimental Method:
Resolution:
3.00 Å
R-Value Free:
0.23
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
P 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:DHH family
Gene (Uniprot):BB_0619
Chain IDs:A, B (auth: C), C (auth: E), D (auth: G), E (auth: F), F (auth: D), G (auth: B), H
Chain Length:325
Number of Molecules:8
Biological Source:Borreliella burgdorferi
Primary Citation
Structural mechanism and inhibitor discovery for DhhP, a Borrelia burgdorferi cyclic di-AMP phosphodiesterase with an Fe/Mn bimetallic center.
Structure 34 758 767.e4 (2026)
PMID: 41742401 DOI: 10.1016/j.str.2026.01.016

Abstact

Second messenger signaling through cyclic dinucleotides regulates critical processes in pathogenic bacteria. DhhP is a phosphodiesterase that regulates levels of cyclic di-AMP (c-di-AMP), an essential second messenger, in Borrelia. Genetic inhibition of DhhP is lethal to Borrelia both in vitro and within a mammalian host. Here, we present the crystal structure of DhhP, revealing a heterobimetallic active site containing precisely positioned manganese and iron ions. We demonstrate specific binding sites for each metal, challenging the prevailing paradigm of homobimetallic active centers in bacterial c-di-AMP phosphodiesterases. The enzyme forms asymmetric dimers with coordinated open and closed conformations, suggesting an alternating mechanism for substrate processing. Additionally, we identified and characterized a series of small-molecule inhibitors of DhhP and demonstrated their ability to inhibit the growth of B. burgdorferi and disrupt spirochete morphology. These compounds establish proof of concept for specific targeting of bacterial c-di-AMP phosphodiesterases and further research of c-di-AMP roles in bacterial cells.
