9L8D image
Deposition Date 2024-12-27
Release Date 2026-04-29
Last Version Date 2026-04-29
Entry Detail
PDB ID:
9L8D
Keywords:
IMMUNE SYSTEM/DNA
Title:

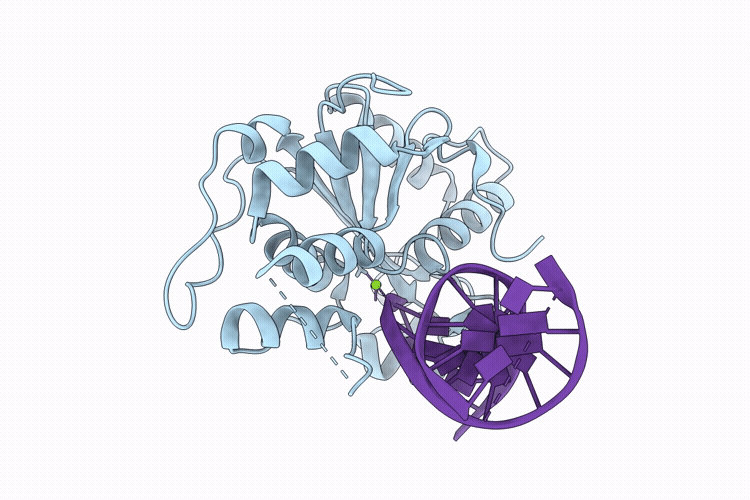

Structure of frog TREX1-DNA complex
Biological Source:
Source Organism(s):
Ranitomeya imitator (Taxon ID: 111125)
synthetic construct (Taxon ID: 32630)
Expression System(s):
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
2.03 Å
R-Value Free:
0.22
R-Value Work:
0.20
R-Value Observed:
0.20
Space Group:
I 41 2 2
9L8D validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Three-prime repair exonucleas
Chain IDs:A
Chain Length:243
Number of Molecules:1
Biological Source:Ranitomeya imitator
UniProt ID:9L8D
Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*GP*TP*TP*GP*GP*CP*
Chain IDs:B
Chain Length:22
Number of Molecules:1
Biological Source:synthetic construct
Ligand Molecules
MG
Primary Citation
Distinct recognition pattern for double-stranded DNA allows TREX1 to maintain immune homeostasis
Immunity ? ? ? (2026)
Primary Citation of related structures
9L8D
