9HHM image
Deposition Date 2024-11-22
Release Date 2025-12-03
Last Version Date 2026-05-20
Entry Detail
PDB ID:
9HHM
Keywords:
Title:

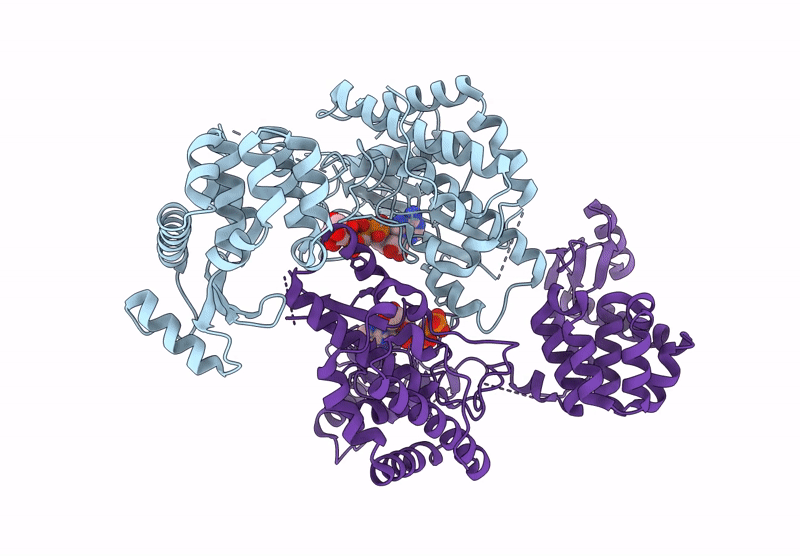

Crystal structure of phosphatidyl inositol 4-kinase II beta in complex with HH5129
Biological Source:
Source Organism(s):
Expression System(s):
Method Details:
Experimental Method:
Resolution:
2.25 Å
R-Value Free:
0.23
R-Value Work:
0.21
R-Value Observed:
0.21
Space Group:
P 41 21 2
Macromolecular Entities
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Phosphatidylinositol 4-kinase
Gene (Uniprot):E, PI4K2B
Chain IDs:A, B
Chain Length:517
Number of Molecules:2
Biological Source:Homo sapiens, Enterobacteria phage T4
Ligand Molecules
Primary Citation
Compounds mimicking the Michaelis-Menten transition state of the phosphatidylinositol 4-kinase.
Bioorg.Med.Chem. 139 118666 118666 (2026)
PMID: 42086018 DOI: 10.1016/j.bmc.2026.118666

Abstact

Phosphatidylinositol 4-kinases (PI4Ks) are crucial enzymes in lipid signaling responsible for generating phosphatidylinositol-4-phosphate (PI4P). Although the ATP-binding site of PI4Ks has been extensively studied, the structural characterization of their natural substrate, phosphatidylinositol (PI), bound to the enzyme remains elusive. In this study, we synthesized novel non-hydrolyzable Michaelis-Menten transition state mimetics in which the ADP molecule is covalently linked to inositol-4-phosphate or simple phosphatidylinositol-4-phosphate via a methylene or ethylene bridge. During our synthesis efforts, we successfully addressed the significantly limited reactivity at position 4 of inositols by utilizing P(III) phosphorus reagents, which proved crucial for the synthesis of these mimetics. For the simplest ADP-C-4PI analogue, we obtained a crystal structure of PI4K2B, which can be used to understand how these phospholipids are phosphorylated on membrane surfaces.
