8JIO image
Deposition Date 2023-05-27
Release Date 2024-05-29
Last Version Date 2025-07-02
Entry Detail
PDB ID:
8JIO
Keywords:
VIRAL PROTEIN
Title:

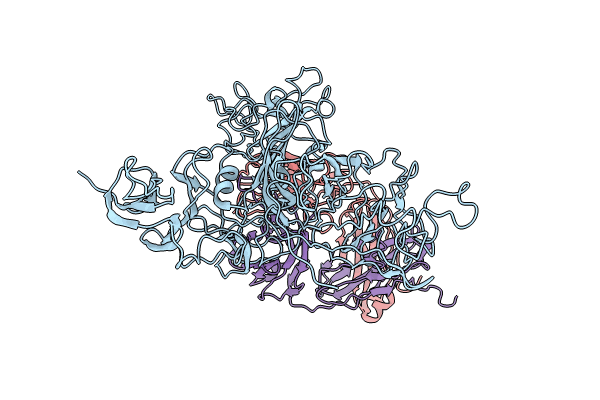

XBB spike protein (S) in complex with monoclonal antibody 6I18
Biological Source:
Source Organism(s):
Severe acute respiratory syndrome coronavirus 2 (Taxon ID: 2697049)
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Homo sapiens
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.30 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
8JIO validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Spike glycoprotein
Gene (Uniprot):S
Chain IDs:A
Chain Length:1295
Number of Molecules:1
Biological Source:Severe acute respiratory syndrome coronavirus 2
UniProt ID:P0DTC2 Pfam ID:PF16451, PF09408, PF19209, PF01601
Polymer Type:polypeptide(L)
Molecule:6I18 light chain
Chain IDs:B
Chain Length:214
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:6I18 heavy chain
Chain IDs:C
Chain Length:452
Number of Molecules:1
Biological Source:Homo sapiens
Ligand Molecules
NA
Primary Citation
Structure of XBB spike protein (S) in complex with monoclonal antibody 6I18 at 3.30 Angstroms resolution.
To be published ? ? ? (?)
Primary Citation of related structures
8JIO
