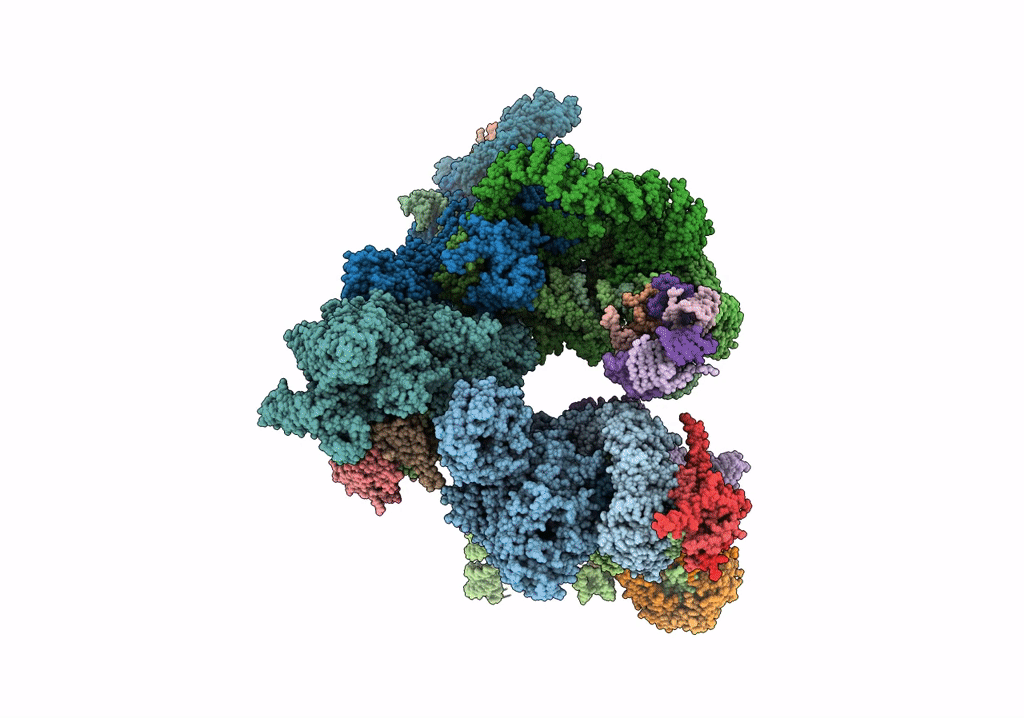

5ZWM image
Deposition Date 2018-05-16
Release Date 2018-08-29
Last Version Date 2024-11-13
Entry Detail
PDB ID:
5ZWM
Keywords:
SPLICING
Title:
Cryo-EM structure of the yeast pre-B complex at an average resolution of 3.4~4.6 angstrom (tri-snRNP and U2 snRNP Part)
Biological Source:
Source Organism(s):
Saccharomyces cerevisiae S288c (Taxon ID: 559292)
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.40 Å
Aggregation State:
CELL
Reconstruction Method:
SINGLE PARTICLE
5ZWM validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U2 snRNP component HSH155
Gene (Uniprot):HSH155
Chain IDs:TA (auth: 1)
Chain Length:971
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P49955 Pfam ID:PF22646
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Cold sensitive U2 snRNA suppr
Gene (Uniprot):CUS1
Chain IDs:UA (auth: 2)
Chain Length:436
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q02554 Pfam ID:PF04037, PF04046
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor RSE1
Gene (Uniprot):RSE1
Chain IDs:VA (auth: 3)
Chain Length:1361
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q04693 Pfam ID:PF10433, PF03178, PF23726
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Protein HSH49
Gene (Uniprot):HSH49
Chain IDs:WA (auth: 4)
Chain Length:213
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q99181 Pfam ID:PF00076
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor RDS3
Gene (Uniprot):RDS3
Chain IDs:XA (auth: 5)
Chain Length:107
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q06835 Pfam ID:PF03660
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:RDS3 complex subunit 10
Gene (Uniprot):YSF3
Chain IDs:YA (auth: 6)
Chain Length:85
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P0C074 Pfam ID:PF07189
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor 8
Gene (Uniprot):PRP8
Chain IDs:A
Chain Length:2413
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P33334 Pfam ID:PF08082, PF10597, PF10596, PF12134, PF08083, PF10598, PF08084 EC:3.1.13.2
Polymer Type:polyribonucleotide
Molecule:U5 snRNA
Chain IDs:R (auth: B)
Chain Length:146
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor SNU1
Gene (Uniprot):SNU114
Chain IDs:H (auth: C)
Chain Length:1008
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P36048 Pfam ID:PF16004, PF00009, PF03764, PF00679
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing helicase BR
Gene (Uniprot):BRR2
Chain IDs:AA (auth: D)
Chain Length:101
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P32639 Pfam ID:PF21188, PF18149, PF00270, PF00271, PF02889, PF23445 EC:3.6.4.13
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Spliceosomal protein DIB1
Gene (Uniprot):DIB1
Chain IDs:F (auth: E)
Chain Length:94
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q06819 Pfam ID:PF02966
Polymer Type:polyribonucleotide
Molecule:U6 snRNA
Chain IDs:P (auth: F)
Chain Length:112
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
Polymer Type:polyribonucleotide
Molecule:Pre-mRNA-BPS
Chain IDs:IA (auth: G)
Chain Length:77
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
Polymer Type:polyribonucleotide
Molecule:U2 snRNA
Chain IDs:JA (auth: H)
Chain Length:196
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
Polymer Type:polyribonucleotide
Molecule:U4 snRNA
Chain IDs:Q (auth: I)
Chain Length:94
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U4/U6 small nuclear ribonucle
Gene (Uniprot):PRP3
Chain IDs:E (auth: J)
Chain Length:86
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q03338 Pfam ID:PF08572, PF06544
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U4/U6 small nuclear ribonucle
Gene (Uniprot):PRP4
Chain IDs:B (auth: K)
Chain Length:465
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P20053 Pfam ID:PF00400
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-processing factor 31
Gene (Uniprot):PRP31
Chain IDs:C (auth: L)
Chain Length:101
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P49704 Pfam ID:PF01798, PF09785
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:13 kDa ribonucleoprotein-asso
Gene (Uniprot):SNU13
Chain IDs:G (auth: M)
Chain Length:146
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P39990 Pfam ID:PF01248
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor 6
Gene (Uniprot):PRP6
Chain IDs:D (auth: N)
Chain Length:899
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P19735 Pfam ID:PF06424
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:66 kDa U4/U6.U5 small nuclear
Gene (Uniprot):SNU66
Chain IDs:S (auth: O)
Chain Length:587
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q12420 Pfam ID:PF19252, PF03343
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U2 snRNP component IST3
Gene (Uniprot):IST3
Chain IDs:ZA (auth: X)
Chain Length:86
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P40565 Pfam ID:PF00076
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor CWC2
Gene (Uniprot):BUD13
Chain IDs:AB (auth: Y)
Chain Length:115
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P46947 Pfam ID:PF09736
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA leakage protein 1
Gene (Uniprot):PML1
Chain IDs:BB (auth: Z)
Chain Length:204
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q07930 Pfam ID:PF00498
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SMB1
Chain IDs:U (auth: a), BA (auth: P), KA (auth: h)
Chain Length:196
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P40018 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SMD1
Chain IDs:V (auth: b), CA (auth: Q), PA (auth: m)
Chain Length:146
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q02260 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SMD2
Chain IDs:W (auth: c), DA (auth: R), QA (auth: n)
Chain Length:1008
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q06217 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SMD3
Chain IDs:T (auth: d), EA (auth: S), OA (auth: l)
Chain Length:187
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P43321 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SME1
Chain IDs:X (auth: e), FA (auth: T), LA (auth: i)
Chain Length:94
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q12330 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SMX3
Chain IDs:Y (auth: f), GA (auth: U), MA (auth: j)
Chain Length:112
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P54999 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Small nuclear ribonucleoprote
Gene (Uniprot):SMX2
Chain IDs:Z (auth: g), HA (auth: V), NA (auth: k)
Chain Length:77
Number of Molecules:3
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P40204 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U2 small nuclear ribonucleopr
Gene (Uniprot):LEA1
Chain IDs:RA (auth: o)
Chain Length:587
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q08963 Pfam ID:PF14580
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U2 small nuclear ribonucleopr
Gene (Uniprot):MSL1
Chain IDs:SA (auth: p)
Chain Length:196
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P40567 Pfam ID:PF13893
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM2
Chain IDs:J (auth: q)
Chain Length:146
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P38203 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM3
Chain IDs:K (auth: r)
Chain Length:110
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P57743 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM4
Chain IDs:O (auth: s)
Chain Length:187
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P40070 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM5
Chain IDs:M (auth: t)
Chain Length:94
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P40089 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor PRP9
Gene (Uniprot):PRP9
Chain IDs:CB (auth: u)
Chain Length:530
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P19736 Pfam ID:PF16958, PF16837, PF11931, PF12171
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor PRP1
Gene (Uniprot):PRP11
Chain IDs:EB (auth: v)
Chain Length:266
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q07350 Pfam ID:PF12874, PF16835
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Pre-mRNA-splicing factor PRP2
Gene (Uniprot):PRP21
Chain IDs:DB (auth: w)
Chain Length:280
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P32524 Pfam ID:PF01805, PF12230
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM6
Chain IDs:L (auth: x)
Chain Length:86
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:Q06406 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM7
Chain IDs:N (auth: y)
Chain Length:115
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P53905 Pfam ID:PF01423
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:U6 snRNA-associated Sm-like p
Gene (Uniprot):LSM8
Chain IDs:I (auth: z)
Chain Length:204
Number of Molecules:1
Biological Source:Saccharomyces cerevisiae S288c
UniProt ID:P47093 Pfam ID:PF01423
Ligand Molecules
GTP
MG
ZN
Primary Citation
Structures of the fully assembledSaccharomyces cerevisiaespliceosome before activation
Science 360 1423 1429 (2018)
PMID: 29794219 DOI: 10.1126/science.aau0325

Abstact

The precatalytic spliceosome (B complex) is preceded by the pre-B complex. Here we report the cryo-electron microscopy structures of the Saccharomyces cerevisiae pre-B and B complexes at average resolutions of 3.3 to 4.6 and 3.9 angstroms, respectively. In the pre-B complex, the duplex between the 5' splice site (5'SS) and U1 small nuclear RNA (snRNA) is recognized by Yhc1, Luc7, and the Sm ring. In the B complex, U1 small nuclear ribonucleoprotein is dissociated, the 5'-exon-5'SS sequences are translocated near U6 snRNA, and three B-specific proteins may orient the precursor messenger RNA. In both complexes, U6 snRNA is anchored to loop I of U5 snRNA, and the duplex between the branch point sequence and U2 snRNA is recognized by the SF3b complex. Structural analysis reveals the mechanism of assembly and activation for the yeast spliceosome.

Legend

Protein

Chemical

Disease

Primary Citation of related structures
5ZWN
5ZWO
Feedback Form
Name
Email
Institute
Feedback
