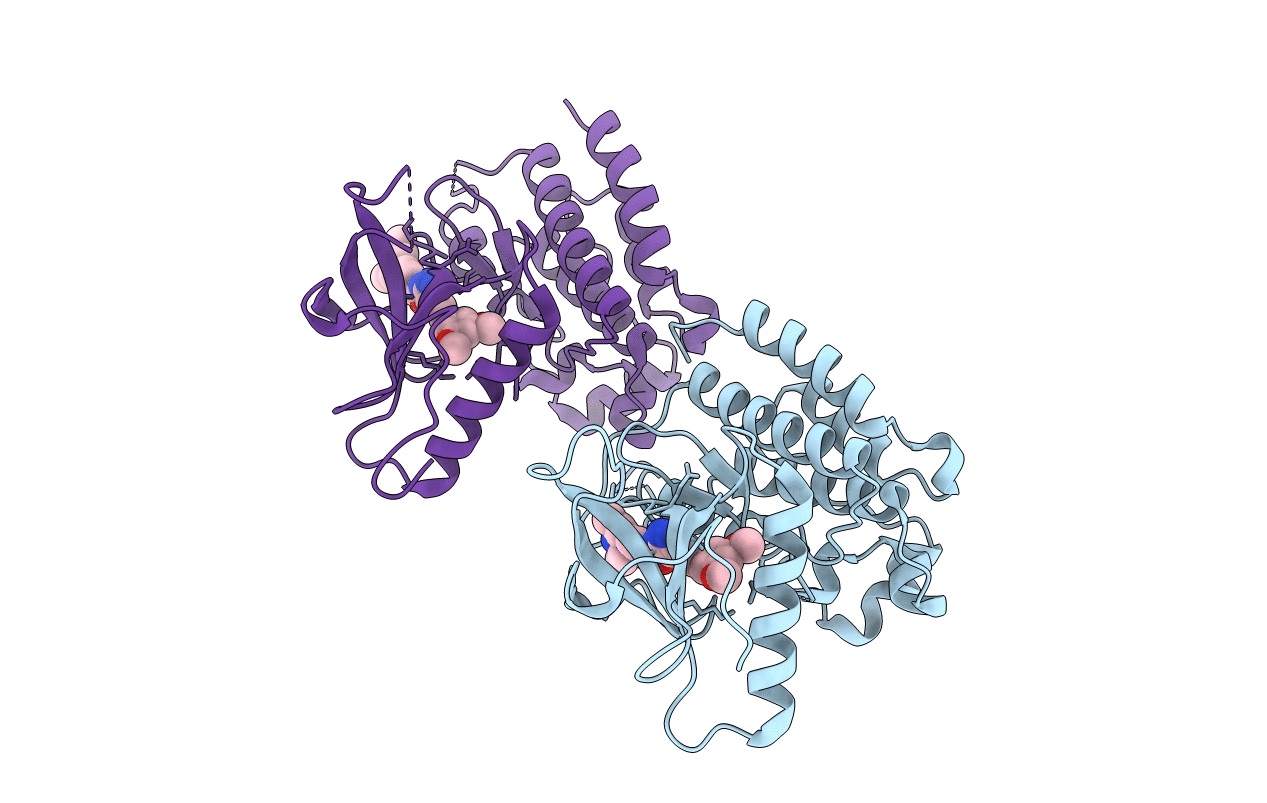

4WUN image
Deposition Date 2014-11-02
Release Date 2014-11-19
Last Version Date 2023-09-27
Entry Detail
PDB ID:
4WUN
Title:
Structure of FGFR1 in complex with AZD4547 (N-{3-[2-(3,5-DIMETHOXYPHENYL)ETHYL]-1H-PYRAZOL-5-YL}-4-[(3R,5S)-3,5-DIMETHYLPIPERAZIN-1-YL]BENZAMIDE) at 1.65 angstrom
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
1.65 Å
R-Value Free:
0.24
R-Value Work:
0.22
R-Value Observed:
0.22
Space Group:
I 1 2 1
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Fibroblast growth factor rece
Gene (Uniprot):FGFR1
Chain IDs:A, B
Chain Length:311
Number of Molecules:2
Biological Source:Homo sapiens
Ligand Molecules
Primary Citation
The 1.65 angstrom resolution structure of the complex of AZD4547 with the kinase domain of FGFR1 displays exquisite molecular recognition.
Acta Crystallogr. D Biol. Crystallogr. 71 525 533 (2015)
PMID: 25760602 DOI: 10.1107/S1399004714027539

Abstact

The fibroblast growth factor receptor (FGFR) family are expressed widely in normal tissues and play a role in tissue repair, inflammation, angiogenesis and development. However, aberrant signalling through this family can lead to cellular proliferation, evasion of apoptosis and induction of angiogenesis, which is implicated in the development of many cancers and also in drug resistance. The high frequency of FGFR amplification or mutation in multiple cancer types is such that this family has been targeted for the discovery of novel, selective drug compounds, with one of the most recently discovered being AZD4547, a subnanomolar (IC50) FGFR1 inhibitor developed by AstraZeneca and currently in clinical trials. The 1.65 Å resolution crystal structure of AZD4547 bound to the kinase domain of FGFR1 has been determined and reveals extensive drug-protein interactions, an integral network of water molecules and the tight closure of the FGFR1 P-loop to form a long, narrow crevice in which the AZD4547 molecule binds.
