4FKA image
Deposition Date 2012-06-13
Release Date 2013-02-13
Last Version Date 2024-11-20
Entry Detail
PDB ID:
4FKA
Keywords:
HORMONE
Title:

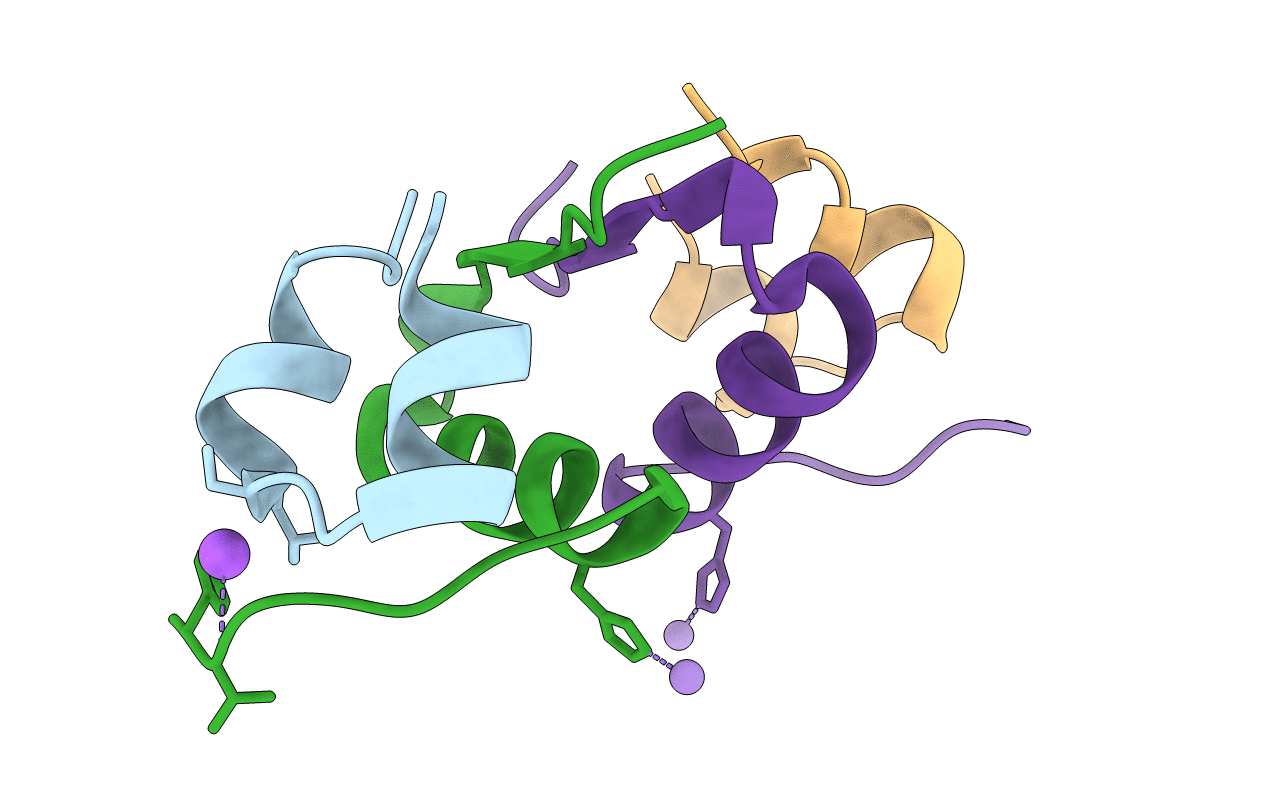

High resolution structure of the manganese derivative of insulin
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.08 Å
R-Value Free:
0.19
R-Value Work:
0.15
R-Value Observed:
0.16
Space Group:
H 3
4FKA validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Insulin A chain
Gene (Uniprot):INS
Chain IDs:A, C
Chain Length:21
Number of Molecules:2
Biological Source:Homo sapiens
UniProt ID:P01308 Pfam ID:PF00049
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Insulin B chain
Gene (Uniprot):INS
Chain IDs:B, D
Chain Length:30
Number of Molecules:2
Biological Source:Homo sapiens
UniProt ID:P01308 Pfam ID:PF00049
Ligand Molecules
MN
NA
Primary Citation
High Resolution Structure of the Manganese Derivative of Insulin
Croatica Chemica Acta 85 435 439 (2012)
Primary Citation of related structures
3EXX
