30FH image
Deposition Date 2026-04-22
Release Date 2026-07-22
Last Version Date 2026-09-02
Entry Detail
PDB ID:
30FH
Keywords:
Title:

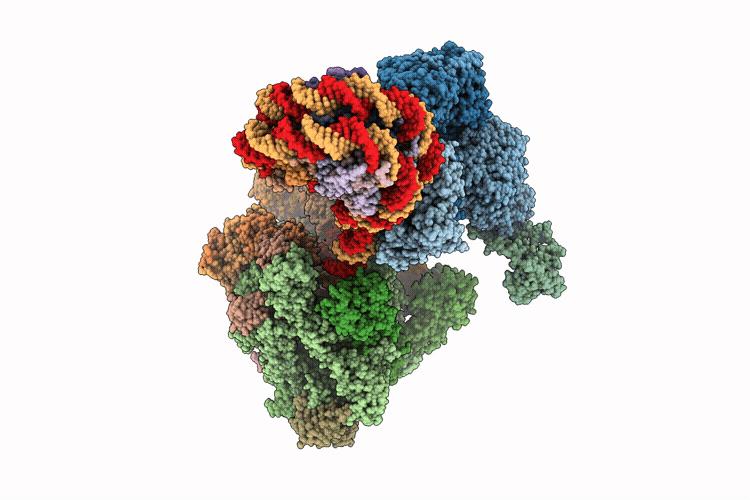

RNA polymerase II initially transcribing complex with a 6-nt RNA and the +1 nucleosome
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Xenopus laevis (Taxon ID: 8355)
Synthetic construct (Taxon ID: 32630)
Sus scrofa (Taxon ID: 9823)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
7.60 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:General transcription and DNA
Gene (Uniprot):ERCC3
Chain IDs:A (auth: 0)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:TFIIH basal transcription fac
Gene (Uniprot):ERCC2
Chain IDs:B (auth: 1)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2H1
Chain IDs:C (auth: 2)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2H4
Chain IDs:D (auth: 3)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2H2
Chain IDs:E (auth: 4)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2H3
Chain IDs:F (auth: 5)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2H5
Chain IDs:G (auth: 6)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:CDK-activating kinase assembl
Gene (Uniprot):MNAT1
Chain IDs:H (auth: 7)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase s
Chain IDs:I (auth: A)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase s
Gene (Uniprot):POLR2B
Chain IDs:J (auth: B)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase I
Gene (Uniprot):POLR2C
Chain IDs:K (auth: C)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:RNA polymerase II subunit D
Gene (Uniprot):POLR2D
Chain IDs:L (auth: D)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase I
Gene (Uniprot):POLR2E
Chain IDs:M (auth: E)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerases
Gene (Uniprot):POLR2F
Chain IDs:N (auth: F)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase I
Gene (Uniprot):POLR2G
Chain IDs:O (auth: G)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerases
Gene (Uniprot):POLR2H
Chain IDs:P (auth: H)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase I
Gene (Uniprot):POLR2I
Chain IDs:Q (auth: I)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerases
Gene (Uniprot):POLR2L
Chain IDs:R (auth: J)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:DNA-directed RNA polymerase I
Gene (Uniprot):POLR2J
Chain IDs:S (auth: K)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:RNA polymerase II subunit K
Gene (Uniprot):POLR2K
Chain IDs:T (auth: L)
Chain Length:0
Number of Molecules:1
Biological Source:Sus scrofa
Polymer Type:polypeptide(L)
Molecule:Transcription initiation fact
Gene (Uniprot):GTF2B
Chain IDs:U (auth: M)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polydeoxyribonucleotide
Molecule:Non-template DNA
Chain IDs:V (auth: N)
Chain Length:0
Number of Molecules:1
Biological Source:Synthetic construct
Polymer Type:polypeptide(L)
Molecule:TATA-box-binding protein
Gene (Uniprot):TBP
Chain IDs:W (auth: O)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polyribonucleotide
Molecule:RNA (5'-R(P*AP*CP*AP*CP*CP*C)
Chain IDs:X (auth: P)
Chain Length:0
Number of Molecules:1
Biological Source:Synthetic construct
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2F1
Chain IDs:Y (auth: Q)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2F2
Chain IDs:Z (auth: R)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polydeoxyribonucleotide
Molecule:Template DNA
Chain IDs:AA (auth: T)
Chain Length:0
Number of Molecules:1
Biological Source:Synthetic construct
Polymer Type:polypeptide(L)
Molecule:Transcription initiation fact
Gene (Uniprot):GTF2A1
Chain IDs:BA (auth: U)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:Transcription initiation fact
Gene (Uniprot):GTF2A2
Chain IDs:CA (auth: V)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:General transcription factor
Gene (Uniprot):GTF2E1
Chain IDs:DA (auth: W)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:Transcription initiation fact
Gene (Uniprot):GTF2E2
Chain IDs:EA (auth: X)
Chain Length:0
Number of Molecules:1
Biological Source:Homo sapiens
Polymer Type:polypeptide(L)
Molecule:Histone H3.2
Mutagens:G103A
Chain IDs:FA (auth: a), JA (auth: e)
Chain Length:0
Number of Molecules:2
Biological Source:Xenopus laevis
Polymer Type:polypeptide(L)
Molecule:Histone H4
Chain IDs:GA (auth: b), KA (auth: f)
Chain Length:0
Number of Molecules:2
Biological Source:Xenopus laevis
Polymer Type:polypeptide(L)
Molecule:Histone H2A type 1
Mutagens:G100R
Chain IDs:HA (auth: c), LA (auth: g)
Chain Length:0
Number of Molecules:2
Biological Source:Xenopus laevis
Polymer Type:polypeptide(L)
Molecule:Histone H2B 1.1
Chain IDs:IA (auth: d), MA (auth: h)
Chain Length:0
Number of Molecules:2
Biological Source:Xenopus laevis
Primary Citation
The +1 nucleosome functions in RNA Pol II transcription initiation and the transition to elongation.
Mol.Cell 86 2939 ? (2026)
PMID: 42480520 DOI: 10.1016/j.molcel.2026.06.042

Abstact

Transcription initiation by RNA polymerase II (RNA Pol II) occurs next to a +1 nucleosome, which is positioned downstream of the transcription start site (TSS). The +1 nucleosome influences pre-initiation complex (PIC) assembly and RNA Pol II pausing, but its function in transcription initiation and the transition to elongation remains unclear. Here, we investigate the transcription initiation-elongation transition in vitro using DNA templates containing a +1 nucleosome and present cryo-electron microscopy (cryo-EM) structures of five intermediate states. First, after PIC assembly, ATP binding to TFIIH enables the +1 nucleosome to evict TFIID from the PIC. Following DNA opening, the +1 nucleosome stimulates TFIIH translocase activity and initial RNA synthesis. Finally, after DNA bubble rewinding, the +1 nucleosome removes TFIIH from the early elongation complex for promoter escape. Our findings show that the +1 nucleosome not only acts passively in PIC assembly and RNA Pol II pausing but rather has active functions during the initiation-elongation transition of transcription.
