2CNB image
Deposition Date 2006-05-18
Release Date 2006-06-12
Last Version Date 2024-05-08
Entry Detail
PDB ID:
2CNB
Keywords:
Title:

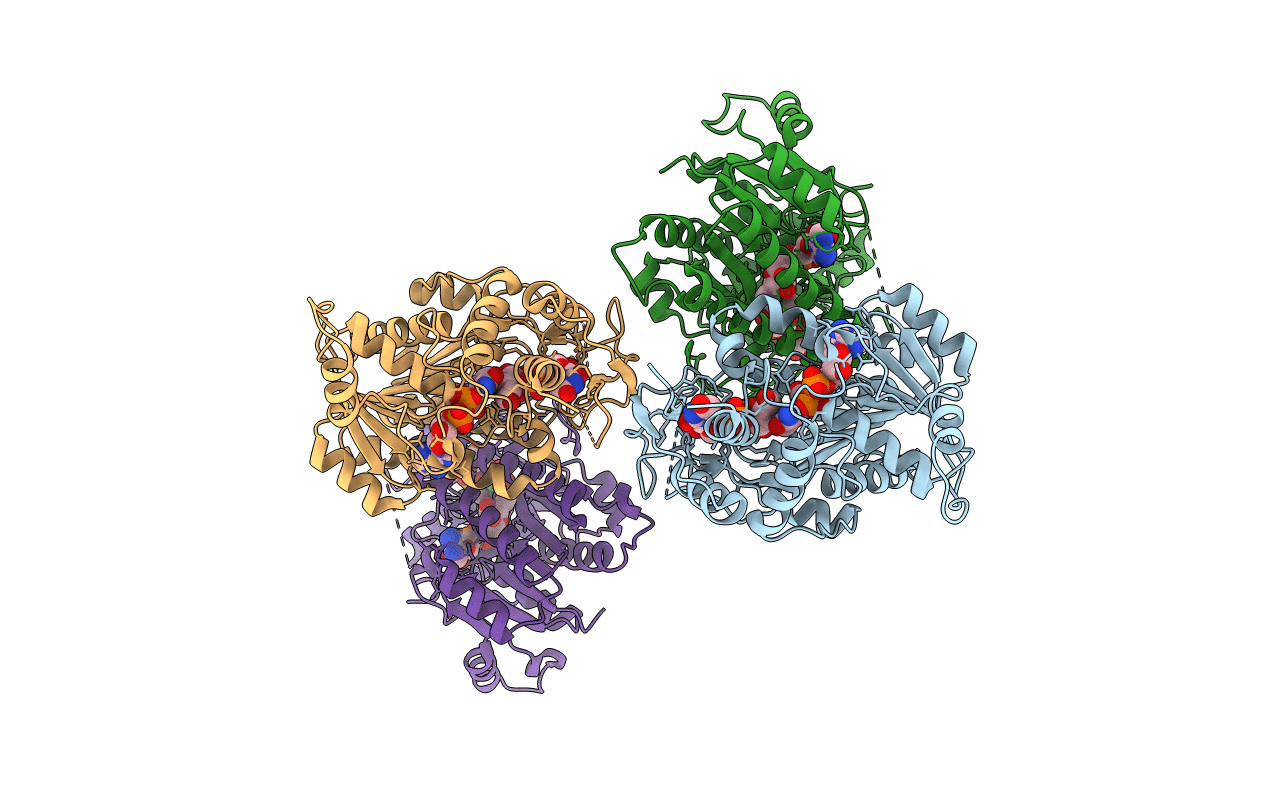

Trypanosoma brucei UDP-galactose-4-epimerase in ternary complex with NAD and the substrate analogue UDP-4-deoxy-4-fluoro-alpha-D-galactose
Biological Source:
Source Organism(s):
Expression System(s):
Method Details:
Experimental Method:
Resolution:
2.70 Å
R-Value Free:
0.28
R-Value Work:
0.19
R-Value Observed:
0.20
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:UDP-GALACTOSE-4-EPIMERASE
Gene (Uniprot):galE
Chain IDs:A, B, C, D
Chain Length:397
Number of Molecules:4
Biological Source:TRYPANOSOMA BRUCEI
Primary Citation
Trypanosoma Brucei Udp-Galactose-4-Epimerase in Ternary Complex with Nad+ and the Substrate Analogue Udp-4-Deoxy-4-Fluoro-Alpha-D-Galactose
Acta Crystallogr. Sect. F Struct. Biol. Cryst. Commun. 62 829 ? (2006)
PMID: 16946458 DOI: 10.1107/S1744309106028740

Abstact

The structure of the NAD-dependent oxidoreductase UDP-galactose-4'-epimerase from Trypanosoma brucei in complex with cofactor and the substrate analogue UDP-4-deoxy-4-fluoro-alpha-D-galactose has been determined using diffraction data to 2.7 A resolution. Despite the high level of sequence and structure conservation between the trypanosomatid enzyme and those from humans, yeast and bacteria, the binding of the 4-fluoro-alpha-D-galactose moiety is distinct from previously reported structures. Of particular note is the observation that when bound to the T. brucei enzyme, the galactose moiety of this fluoro-derivative is rotated approximately 180 degrees with respect to the orientation of the hexose component of UDP-glucose when in complex with the human enzyme. The architecture of the catalytic centre is designed to effectively bind different orientations of the hexose, a finding that is consistent with a mechanism that requires the sugar to maintain a degree of flexibility within the active site.
