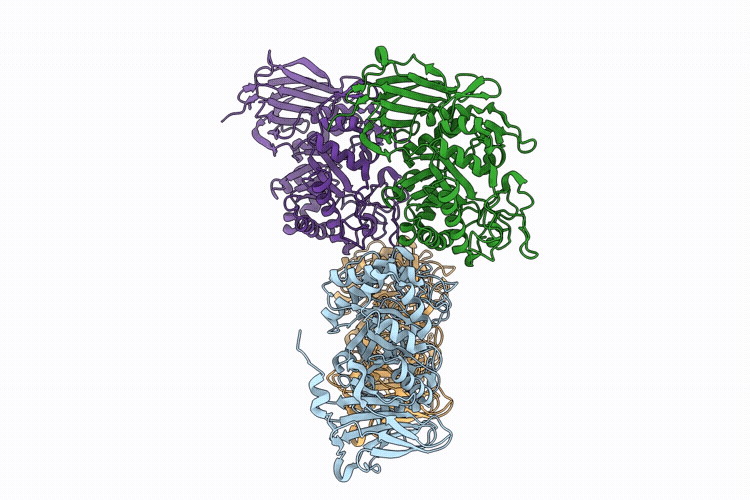

24TG image
Deposition Date 2026-03-19
Release Date 2026-08-12
Last Version Date 2026-08-12
Entry Detail
PDB ID:
24TG
Keywords:
Title:
Crystal structure of selenomethionine labelled Streptomyces avermitilis endo-beta-1,6-galactanase
Biological Source:
Expression System(s):
Method Details:
Experimental Method:
Resolution:
2.00 Å
R-Value Free:
0.21
R-Value Work:
0.16
Space Group:
P 1 21 1
Macromolecular Entities
Polymer Type:polypeptide(L)
Molecule:Secreted endo-beta-1,6-galact
Chain IDs:A, B, C, D
Chain Length:484
Number of Molecules:4
Biological Source:Streptomyces avermitilis MA-4680 = NBRC 14893
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE A MET modified residue
Primary Citation
Crystal structure of endo-beta-1,6-galactanase from Streptomyces avermitilis.
Acta Crystallogr D Struct Biol 82 962 971 (2026)
PMID: 42478457 DOI: 10.1107/S2059798326006133

Abstact

Endo-beta-1,6-galactanases hydrolyze beta-1,6-linked galactosyl linkages in galactans, yielding beta-1,6-linked galacto-oligosaccharides, predominantly galactobiose. Here, we report to our knowledge the first crystal structure of an endo-beta-1,6-galactanase, together with its beta-1,6-galactobiose-bound complex, revealing the structural basis for substrate recognition by this enzyme. Endo-beta-1,6-galactanase from Streptomyces avermitilis (Sa16Gal30A) is a member of glycoside hydrolase family 30 (GH30) subfamily 5. Sa16Gal30A consists of two structural domains: a catalytic (beta/alpha)(8)-barrel domain and an appended beta-sandwich domain. The beta-1,6-galactobiose complex structure revealed two beta-1,6-galactobiose molecules bound within the catalytic domain: one at the catalytic site and another at the distinct surface site distal to the catalytic center. This structure represents the first reported structure of a GH30 subfamily 5 enzyme and provides structural insights into the molecular basis of beta-1,6-galactan recognition within the catalytic cleft. Sa16Gal30A possesses three extended regions, loops 2, 4 and 8, in the catalytic domain compared with enzymes from other GH30 subfamilies, and these loops appear to modulate substrate specificity towards beta-1,6-galactan by shaping the architecture of the catalytic cleft. In addition, a secondary beta-1,6-galactan-binding site was identified at a distal location, which may function as a distal subsite, thereby facilitating the efficient hydrolysis of long beta-1,6-galactan chains.
