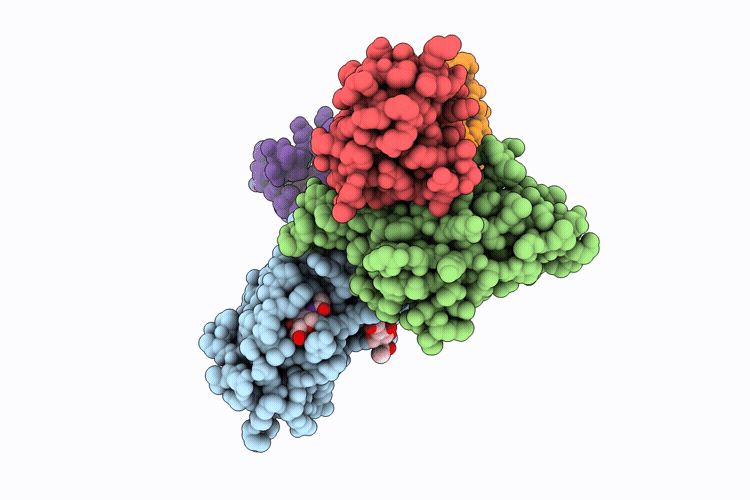

22HP image
Deposition Date 2026-01-11
Release Date 2026-08-05
Last Version Date 2026-08-05
Entry Detail
PDB ID:
22HP
Keywords:
VIRAL PROTEIN
Title:
SARS-CoV-2 BA.3.2.2(RE.2.2) RBD in complex with monoclonal antibodies S2K146 and L4.65
Biological Source:
Source Organism(s):
Severe acute respiratory syndrome coronavirus 2 (Taxon ID: 2697049)
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Homo sapiens
Method Details:
Experimental Method:
ELECTRON MICROSCOPY
Resolution:
3.00 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
22HP validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:Spike protein S1
Gene (Uniprot):S
Chain IDs:A
Chain Length:186
Number of Molecules:1
Biological Source:Severe acute respiratory syndrome coronavirus 2
UniProt ID:P0DTC2 Pfam ID:PF09408
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:The heavy chain of monoclonal
Chain IDs:B (auth: H)
Chain Length:127
Number of Molecules:1
Biological Source:Homo sapiens
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:The light chain of monoclonal
Chain IDs:C (auth: L)
Chain Length:108
Number of Molecules:1
Biological Source:Homo sapiens
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:The heavy chain of monoclonal
Chain IDs:D (auth: T)
Chain Length:93
Number of Molecules:1
Biological Source:Homo sapiens
Structural Superimposition Protein Blast
Polymer Type:polypeptide(L)
Molecule:The light chain of monoclonal
Chain IDs:E (auth: t)
Chain Length:93
Number of Molecules:1
Biological Source:Homo sapiens
Ligand Molecules
NAG
Primary Citation
Receptor Binding, Immune Escape, and Cross-Species Transmission of SARS-CoV-2 Serum-Defined Lineage 7, BA.3.2.2(RE.2.2)
To Be Published ? ? ? (?)
Primary Citation of related structures
22HP
