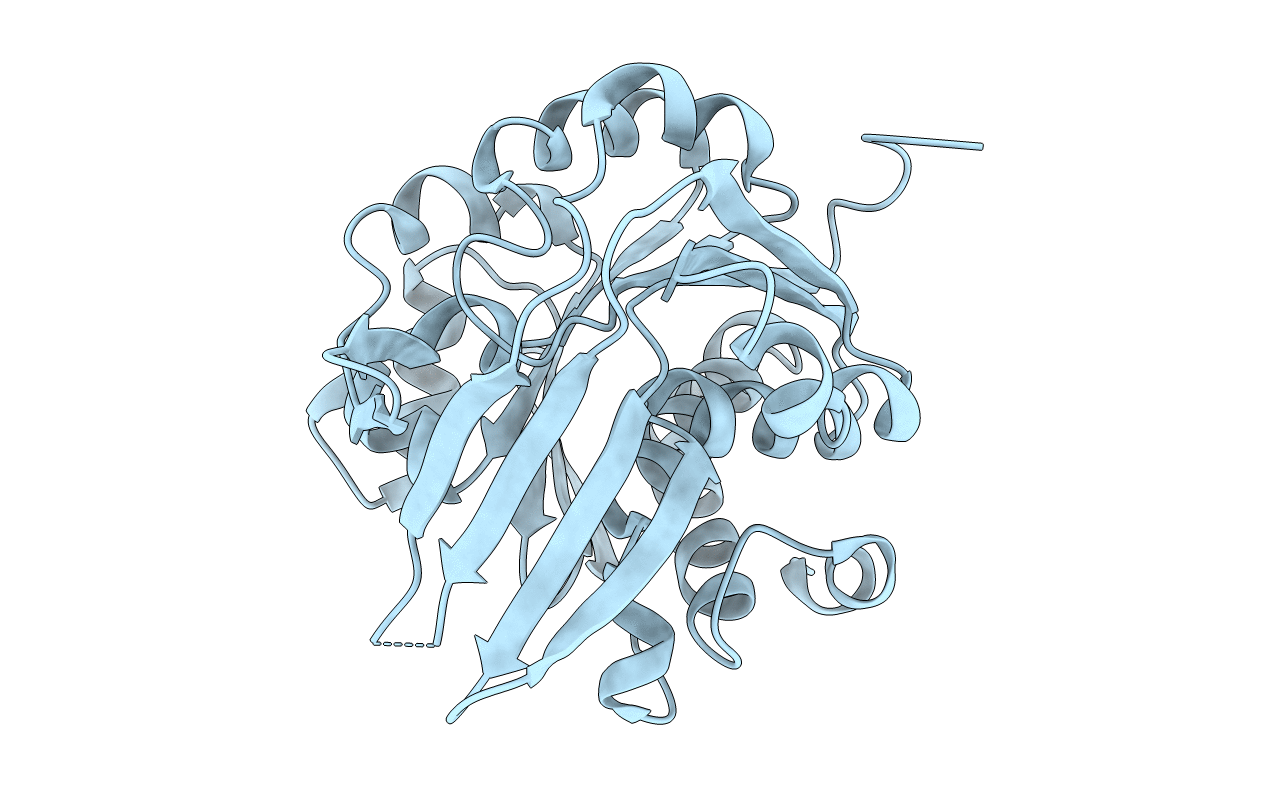

1VK4 image
Deposition Date 2004-04-26
Release Date 2004-05-04
Last Version Date 2024-10-30
Entry Detail
PDB ID:
1VK4
Keywords:
TRANSFERASE
Title:
Crystal structure of PfkB Carbohydrate kinase (TM0415) from Thermotoga maritima at 1.91 A resolution
Biological Source:
Source Organism(s):
Thermotoga maritima (Taxon ID: 2336)
Expression System(s):
Escherichia coli
Method Details:
Experimental Method:
X-RAY DIFFRACTION
Resolution:
1.91 Å
R-Value Free:
0.21
R-Value Work:
0.16
R-Value Observed:
0.17
Space Group:
P 21 21 21
1VK4 validation report missing
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:PfkB Carbohydrate kinase TM04
Gene (Uniprot):TM_0415
Chain IDs:A
Chain Length:298
Number of Molecules:1
Biological Source:Thermotoga maritima
UniProt ID:Q9WYP6 Pfam ID:PF00294
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE A MET SELENOMETHIONINE
Primary Citation
Crystal structure of PfkB Carbohydrate kinase (TM0415) from Thermotoga maritima at 1.91 A resolution
To be published ? ? ? (?)
Primary Citation of related structures
1VK4
