ISDA: 13DE

Deposition Date 2026-04-30

Release Date 2026-08-05

Last Version Date 2026-08-05

Entry Detail

PDB ID:

13DE

Keywords:

NUCLEAR PROTEIN

Title:

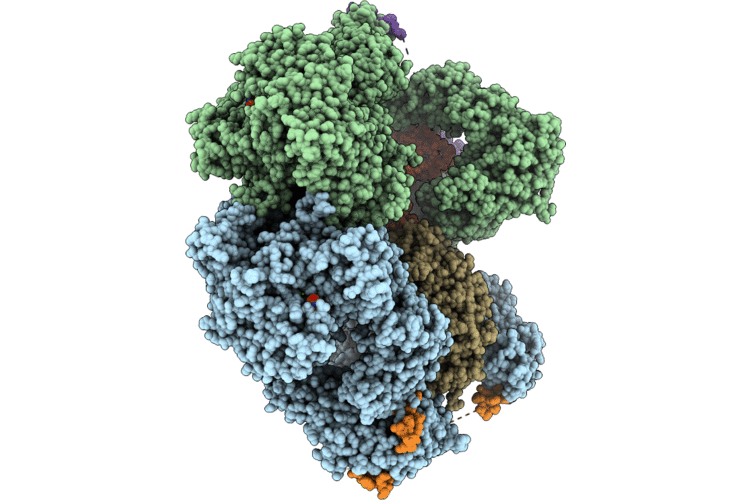

Cryo-EM structure of ATR-ATRIP-ETAA1 AAD (S95D/S111D)

Biological Source:

Source Organism(s):

Homo sapiens (Taxon ID: 9606)

Expression System(s):

Homo sapiens, Escherichia coli

Method Details:

Experimental Method:

ELECTRON MICROSCOPY

Resolution:

2.90 Å

Aggregation State:

PARTICLE

Reconstruction Method:

SINGLE PARTICLE

Download Validation Report

Macromolecular Entities

Structures with similar UniProt ID

Structural Superimposition Protein Blast

Polymer Type:polypeptide(L)
Molecule:Serine/threonine-protein kina
Gene (Uniprot):ATR
Chain IDs:A, C (auth: B)
Chain Length:2663
Number of Molecules:2
Biological Source:Homo sapiens

UniProt ID:Q13535 Pfam ID:PF25032, PF08064, PF25030, PF02259, PF23593, PF00454, PF02260 EC:2.7.11.1

Structures with similar UniProt ID

Structural Superimposition Protein Blast

Polymer Type:polypeptide(L)
Molecule:ATR-interacting protein
Gene (Uniprot):ATRIP
Chain IDs:B (auth: C), D
Chain Length:810
Number of Molecules:2
Biological Source:Homo sapiens

UniProt ID:Q8WXE1

Structures with similar UniProt ID

Structural Superimposition Protein Blast

Polymer Type:polypeptide(L)
Molecule:Ewing's tumor-associated anti
Gene (Uniprot):ETAA1
Mutagens:S95D, S111D
Chain IDs:E (auth: F), F (auth: E)
Chain Length:205
Number of Molecules:2
Biological Source:Homo sapiens

UniProt ID:Q9NY74 Pfam ID:PF15350

Ligand Molecules
