ISDA: 10HF

Deposition Date 2026-01-19

Release Date 2026-03-25

Last Version Date 2026-03-25

Entry Detail

PDB ID:

10HF

Keywords:

DNA

Title:

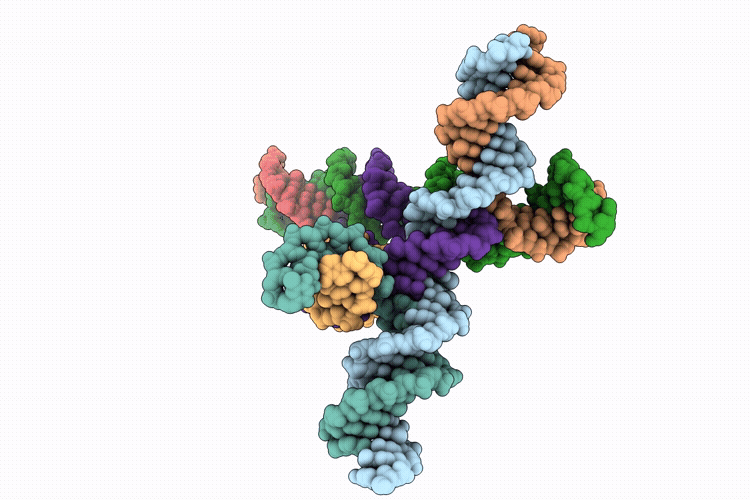

[17,17,7-7N_3T] Isosceles tensegrity triangle with 17, 17 and 7 base pairs between junctions, three turn edges

Biological Source:

Source Organism(s):

synthetic construct (Taxon ID: 32630)

Method Details:

Experimental Method:

X-RAY DIFFRACTION

Resolution:

7.24 Å

R-Value Free:

0.16

R-Value Work:

0.14

R-Value Observed:

0.14

Space Group:

P 1

Download Validation Report

Macromolecular Entities

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (31-MER)
Chain IDs:A
Chain Length:31
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*TP*GP*TP*GP*AP*TP*
Chain IDs:B
Chain Length:19
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (31-MER)
Chain IDs:C
Chain Length:31
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*TP*TP*CP*GP*TP*AP*
Chain IDs:D
Chain Length:14
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (31-MER)
Chain IDs:E
Chain Length:31
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(*TP*CP*AP*GP*CP*TP*
Chain IDs:F
Chain Length:19
Number of Molecules:1
Biological Source:synthetic construct

Polymer Type:polydeoxyribonucleotide
Molecule:DNA (41-MER)
Chain IDs:G
Chain Length:41
Number of Molecules:1
Biological Source:synthetic construct

Ligand Molecules

Primary Citation

Shape Anisotropy in 3D DNA Architectures

Vecchioni, S, Woloszyn, K, Sha, R, Ohayon, Y.P, Perren, L.Show

To be published ? ? ? (?)
