Deposition Date 2025-02-25
Release Date 2026-02-11
Last Version Date 2026-03-04
Entry Detail
PDB ID:
9M0K
Title:

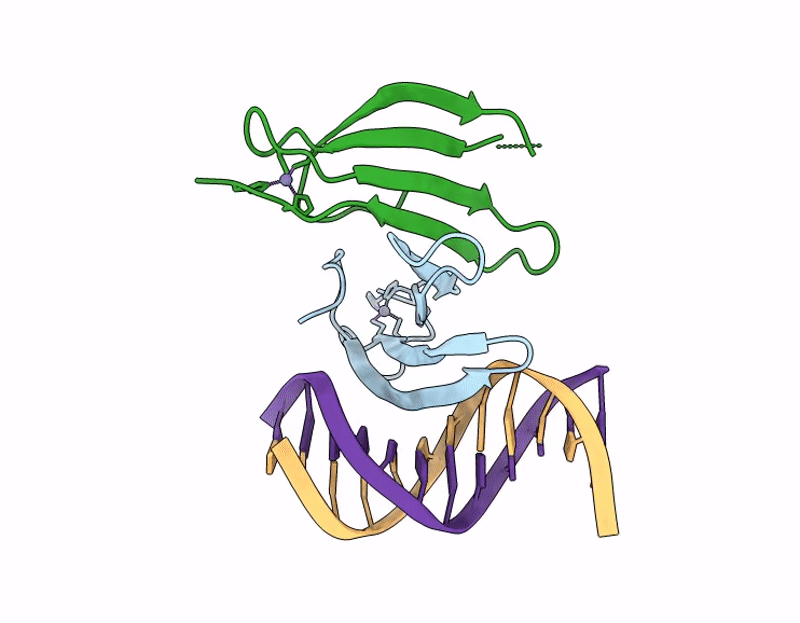

Crystal structure of the WRKY DNA-binding domain in complex with the W-box DNA motif
Biological Source:
Source Organism(s):
Expression System(s):
Method Details:
Experimental Method:
Resolution:
1.80 Å
R-Value Free:
0.28
R-Value Work:
0.24
R-Value Observed:
0.24
Space Group:
C 2 2 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:WRKY17 transcription factor
Chain IDs:A, B
Chain Length:66
Number of Molecules:2
Biological Source:Gossypium hirsutum
Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(P*TP*CP*TP*AP*GP*TP
Chain IDs:C
Chain Length:12
Number of Molecules:1
Biological Source:Gossypium hirsutum
Polymer Type:polydeoxyribonucleotide
Molecule:DNA (5'-D(P*TP*GP*AP*TP*TP*GP
Chain IDs:D
Chain Length:12
Number of Molecules:1
Biological Source:Gossypium hirsutum
Ligand Molecules
Primary Citation
Structural basis for sequence-specific DNA recognition by a group IId WRKY transcription factor GhWRKY17 in cotton.
Biochem.J. 483 149 160 (2026)
PMID: 41569870 DOI: 10.1042/BCJ20250191

Abstact

WRKY transcription factors, a plant-specific family of transcriptional regulators, are classified into four groups (I-IV) and play pivotal roles in plant defense, development, and stress responses. These proteins are characterized by conserved WRKY domains that preferentially bind to the W-box cis-element C/TTGACC/T in target gene promoters. In Gossypium hirsutum (Gh; upland cotton), the group IId member GhWRKY17 regulates cotton fiber development by activating downstream target genes such as GhHOX3 through promoter W-box binding. However, the structural basis for its DNA recognition specificity remains elusive. Here, we present the 1.8 Å resolution crystal structure of the GhWRKY17 WRKY domain in complex with the GhHOX3 promoter DNA-the first structural characterization of a group IId WRKY protein. Structural analysis reveals that it consists of four antiparallel β-strands, with the β2-strand (harboring the conserved 249WRKYGQK255 motif) and β3-strand co-operatively engaging the DNA major groove. Key residues (R250, K251, Y252, Q254, K255, R264, Y266, Y267) form an intricate hydrogen-bonding network essential for recognizing the extended G/TTTGACC motif. Comparative structural analyses with group I/IIa/III WRKY-DNA complexes reveal that GhWRKY17's dual-strand engagement and extensively hydrogen bond-mediated specific interaction represent novel mechanistic features distinguishing group IId members from other WRKY subgroups, emphasizing the necessity for subgroup-specific investigations. These findings not only establish a structural paradigm for group IId WRKY function but also provide molecular insights for engineering cotton fiber traits through transcriptional regulation.
