9GHY image
Deposition Date 2024-08-16
Release Date 2024-11-06
Last Version Date 2024-12-04
Entry Detail
PDB ID:
9GHY
Keywords:
Title:

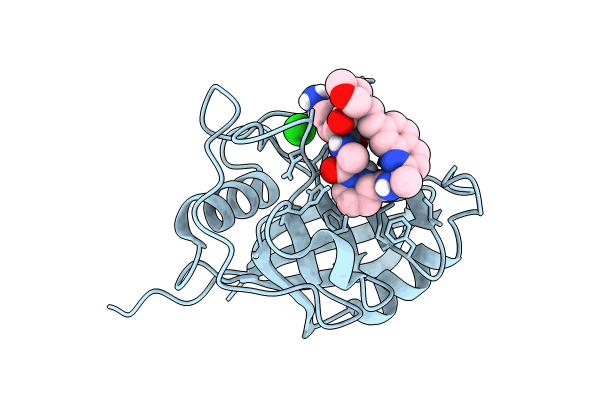

Cyclophilin A in complex with Sanglifehrin A analogue (2R,3S,7S,10S,E)-10-(3-aminopropyl)-2,7-dimethylspiro[3,8,11-triaza-1(2,7)-quinolina-5(3,1)-pyridazinacyclopentadecaphanene-13,5'-[1,3]dioxan]-14-ene-4,6,9,12-tetraone
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Method Details:
Experimental Method:
Resolution:
1.15 Å
R-Value Free:
0.14
R-Value Work:
0.13
Space Group:
P 21 21 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Peptidyl-prolyl cis-trans iso
Gene (Uniprot):PPIA
Chain IDs:A
Chain Length:167
Number of Molecules:1
Biological Source:Homo sapiens
Primary Citation
Toward Dual Targeting of Catalytic and Gatekeeper Pockets in Cyclophilins Using a Macrocyclic Scaffold.
Acs Med.Chem.Lett. 15 2012 2018 (2024)
PMID: 39563809 DOI: 10.1021/acsmedchemlett.4c00427

Abstact

Cyclophilins, especially cyclophilin A, are involved in a variety of diseases, including the life cycle of many viruses. An advanced macrocyclic inhibitor of cyclophilin was reported to bind the catalytic pocket but not the neighboring gatekeeper pocket. Here we describe macrocyclic cyclophilin inhibitors bearing side chains designed to reach out to the gatekeeper pocket. After establishing a suitable synthesis allowing for late-stage modification of the relevant positions, we explored this exit vector. This culminated in a rigid ornithine-resembling analogue as a versatile building block, which was also incorporated into the macrocyclic scaffold. The use of amines as the gatekeeper-engaging modality was invalidated, but the exit vector was successfully established as a promising position for future modifications. Further work is needed to identify suitable motifs to simultaneously engage the catalytic and gatekeeper pockets in this highly developed macrocyclic scaffold.
