6ISU image
Deposition Date 2018-11-19
Release Date 2019-02-06
Last Version Date 2024-11-13
Entry Detail
PDB ID:
6ISU
Keywords:
Title:

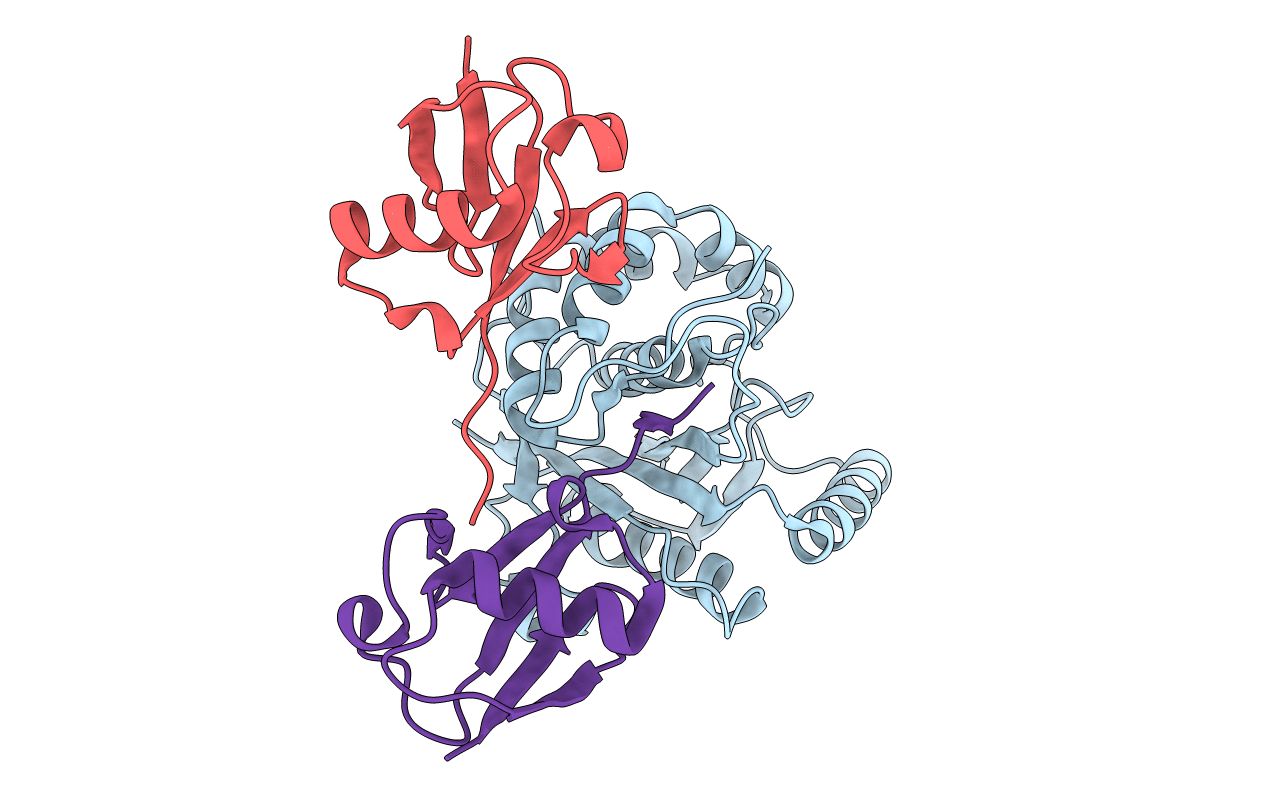

Crystal structure of Lys27-linked di-ubiquitin in complex with its selective interacting protein UCHL3
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
1.87 Å
R-Value Free:
0.26
R-Value Work:
0.20
R-Value Observed:
0.21
Space Group:
C 2 2 21
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Ubiquitin carboxyl-terminal h
Gene (Uniprot):UCHL3
Chain IDs:A
Chain Length:230
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Ubiquitin
Gene (Uniprot):UBB
Chain IDs:B
Chain Length:76
Number of Molecules:1
Biological Source:Homo sapiens
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Ubiquitin
Gene (Uniprot):UBB
Chain IDs:C
Chain Length:76
Number of Molecules:1
Biological Source:Homo sapiens
Primary Citation
Chemical Protein Synthesis Enabled Mechanistic Studies on the Molecular Recognition of K27-linked Ubiquitin Chains.
Angew. Chem. Int. Ed. Engl. 58 2627 2631 (2019)
PMID: 30589182 DOI: 10.1002/anie.201810814

Abstact

New synthetic strategies that exploited the strengths of both chemoselective ligation and recombinant protein expression were developed to prepare K27 di-ubiquitins (diUb), which enabled mechanistic studies on the molecular recognition of K27-linked Ubs by single-molecule Förster resonance energy transfer (smFRET) and X-ray crystallography. The results revealed that free K27 diUb adopted a compact conformation, whereas upon binding to UCHL3, K27 diUb was remodeled to an open conformation. The K27 isopeptide bond remained rigidly buried inside the diUb moiety during binding, an interesting unique structural feature that may explain the distinctive biological function of K27 Ub chains.
