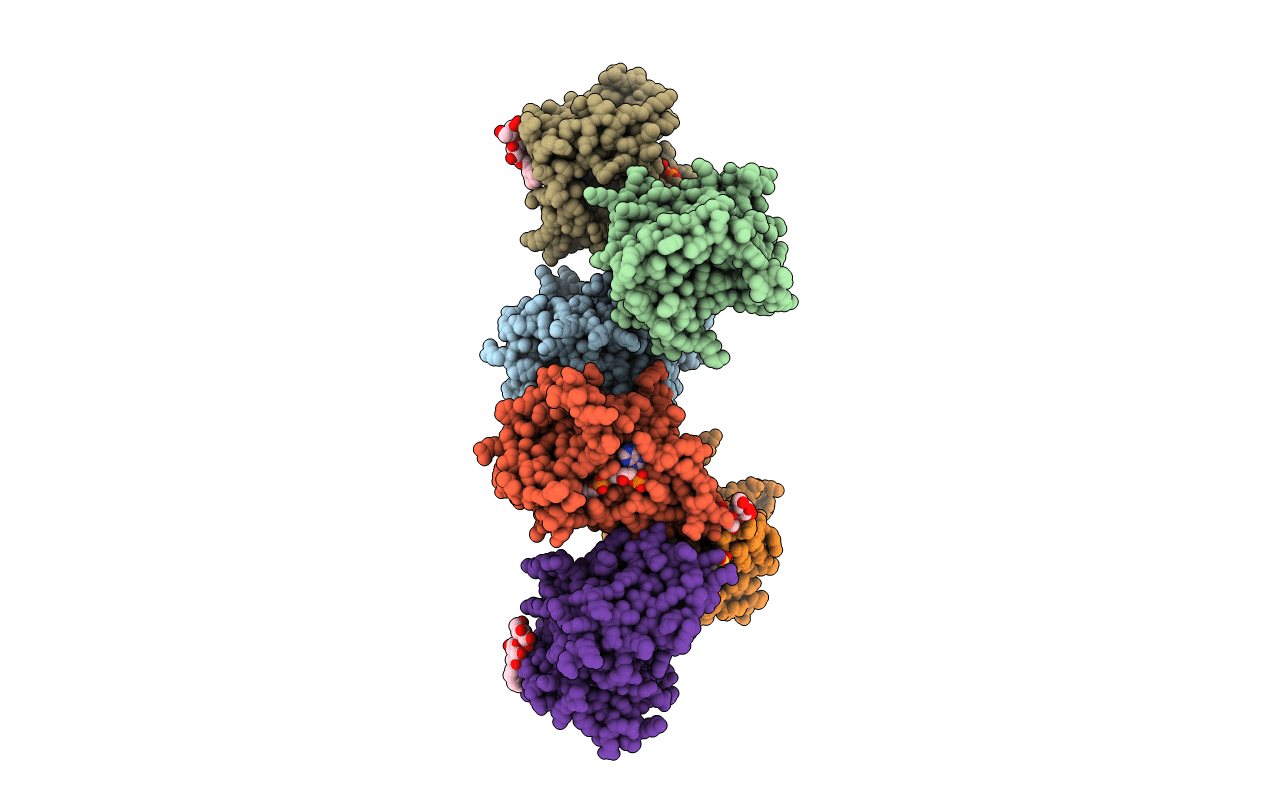

2AZN image
Deposition Date 2005-09-12
Release Date 2006-08-29
Last Version Date 2024-10-16
Entry Detail
PDB ID:
2AZN
Keywords:
Title:
X-RAY Structure of 2,5-diamino-6-ribosylamino-4(3h)-pyrimidinone 5-phosphate reductase
Biological Source:
Source Organism(s):
Expression System(s):
Method Details:
Experimental Method:
Resolution:
2.70 Å
R-Value Free:
0.25
R-Value Work:
0.23
R-Value Observed:
0.23
Space Group:
P 43 21 2
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Putative 5-amino-6-(5-phospho
Gene (Uniprot):arfC
Chain IDs:A, B, C, D, E, F
Chain Length:219
Number of Molecules:6
Biological Source:Methanocaldococcus jannaschii
Modified Residue
Compound ID Chain ID Parent Comp ID Details 2D Image
MSE A MET SELENOMETHIONINE
Primary Citation
Biosynthesis of riboflavin: structure and properties of 2,5-diamino-6-ribosylamino-4(3H)-pyrimidinone 5'-phosphate reductase of Methanocaldococcus jannaschii
J. Mol. Biol. 359 1334 1351 (2006)
PMID: 16730025 DOI: 10.1016/j.jmb.2006.04.045

Abstact

The pyrimidine reductase of the riboflavin biosynthetic pathway (MjaRED) specified by the open reading frame MJ0671 of Methanocaldococcus jannaschii was expressed in Escherichia coli using a synthetic gene. The synthetic open reading frame that was optimized for expression in E. coli directed the synthesis of abundant amounts of the enzyme with an apparent subunit mass of 25 kDa. The enzyme was purified to apparent homogeneity and was shown to catalyze the conversion of 2,5-diamino-6-ribosylamino-4(3H)-pyrimidinone 5'-phosphate into 2,5-diamino-6-ribitylamino-4(3H)-pyrimidinone 5'-phosphate at a rate of 0.8 micromol min(-1) mg(-1) at pH 8.0 and at 30 degrees C. The protein is a homodimer as shown by sedimentation equilibrium analysis and sediments at an apparent velocity of 3.5 S. The structure of the enzyme in complex with the cofactor nicotinamide adenine dinucleotide phosphate was determined by X-ray crystallography at a resolution of 2.5 Angstroms. The folding pattern resembles that of dihydrofolate reductase with the Thermotoga maritima ortholog as the most similar structure. The substrate, 2,5-diamino-6-ribosylamino-4(3H)-pyrimidinone 5'-phosphate, was modeled into the putative active site. The model suggests the transfer of the pro-R hydrogen of C-4 of NADPH to C-1' of the substrate.
