10AD image
Deposition Date 2026-01-08
Release Date 2026-02-04
Last Version Date 2026-02-11
Entry Detail
PDB ID:
10AD
Title:

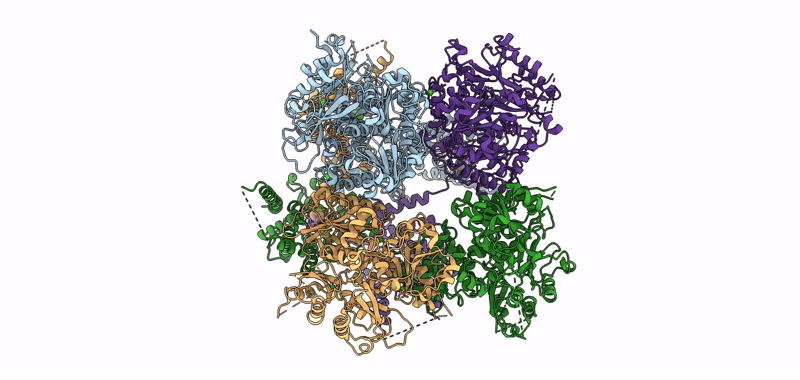

Cryo-EM structure of the human BK channel bound to the agonist NS1619
Biological Source:
Source Organism(s):
Homo sapiens (Taxon ID: 9606)
Expression System(s):
Method Details:
Experimental Method:
Resolution:
3.44 Å
Aggregation State:
PARTICLE
Reconstruction Method:
SINGLE PARTICLE
Macromolecular Entities
Structures with similar UniProt ID
Protein Blast
Polymer Type:polypeptide(L)
Molecule:Isoform 5 of Calcium-activate
Gene (Uniprot):KCNMA1
Chain IDs:A (auth: E), B (auth: C), C (auth: D), D (auth: A)
Chain Length:1113
Number of Molecules:4
Biological Source:Homo sapiens
Primary Citation
The BK channel-NS1619 agonist complex reveals molecular insights into allosteric activation gating.
Proc. Natl. Acad. Sci. U.S.A. 123 e2507707123 e2507707123 (2026)
PMID: 41591909 DOI: 10.1073/pnas.2507707123

Abstact

BK channels play essential roles in a wealth of physiological functions, including regulating smooth muscle tone and neurotransmitter release. Its dysfunction, often caused by loss-of-function mutations, can lead to severe phenotypes, including ataxia and sensory impairment. Despite the therapeutic potential of BK channel agonists, the molecular mechanisms by which they stabilize the pore's open conformation remain unclear. Using cryoelectron microscopy and molecular dynamic simulations, we identified that NS1619, a synthetic benzimidazolone agonist, first described as a BK opener, binds within a pocket formed by the S6/RCK1 linker and the S4 transmembrane segment. Our simulations suggest that agonist binding promotes a twisting motion in the S6 segment, enabling critical interactions with residues K330, K331, and F223. These findings provide a molecular model for the mechanism of NS1619 and suggest that its binding site can accommodate other agonists, highlighting a promising target for therapeutic development.
